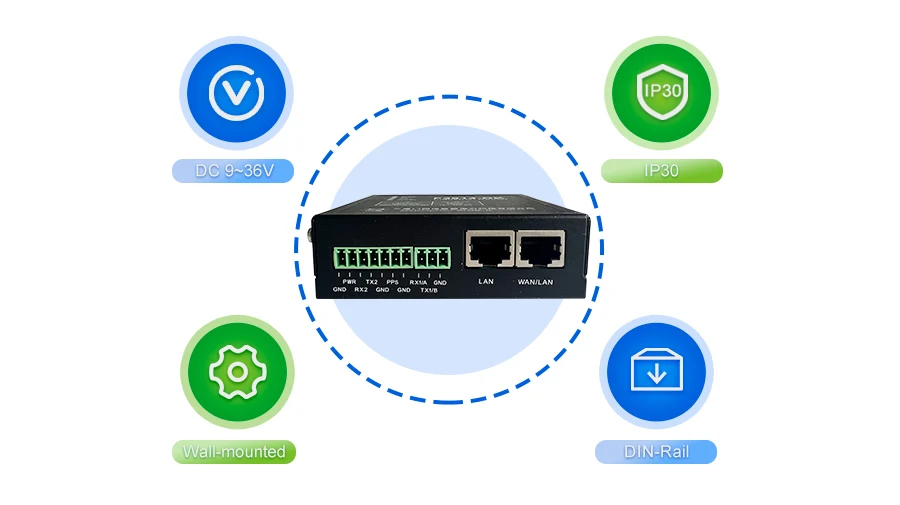

Metal shell, protection level IP30, metal casing, and system safety isolation, especially suitable for industrial control field
applications;
Wide power input (DC 9~36V) optional (DC9~60V);

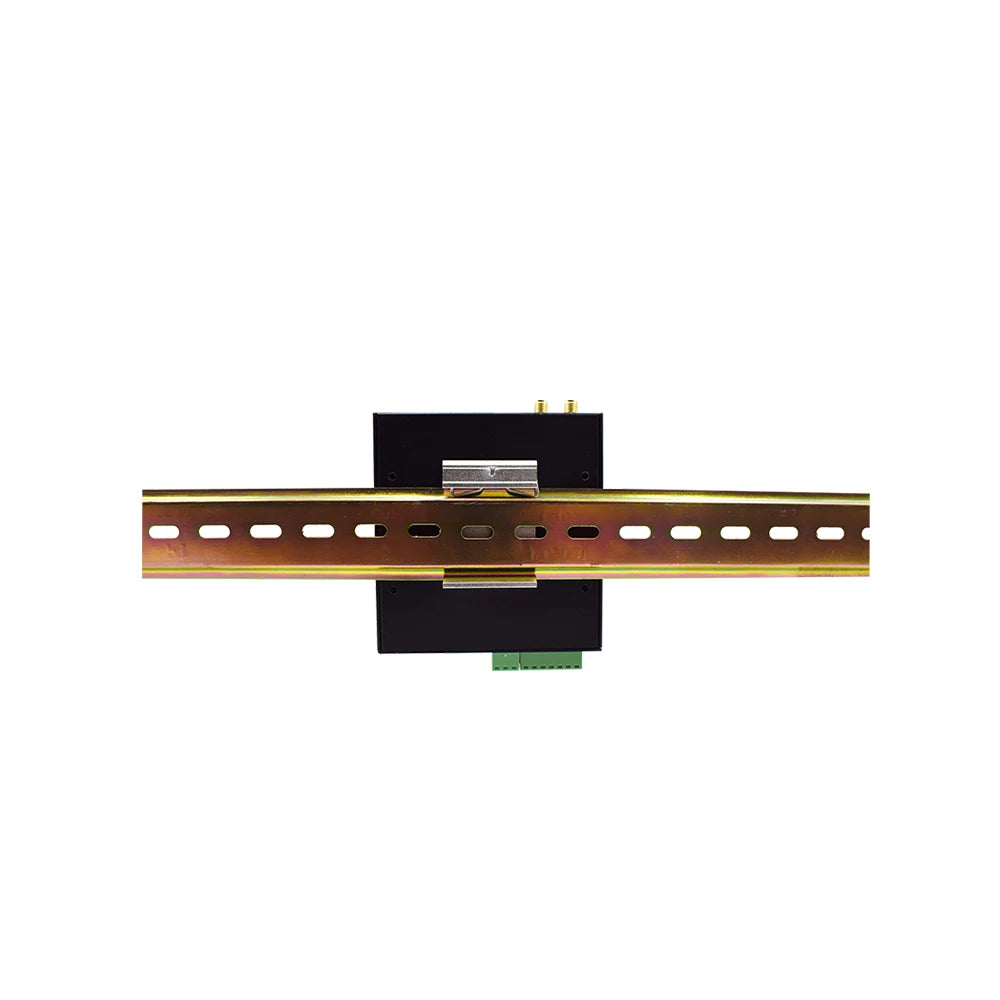

The design is compact, supports wall-mounted and rail-mounted installations is easy to install, meets the use of most industrial.
BeiTop

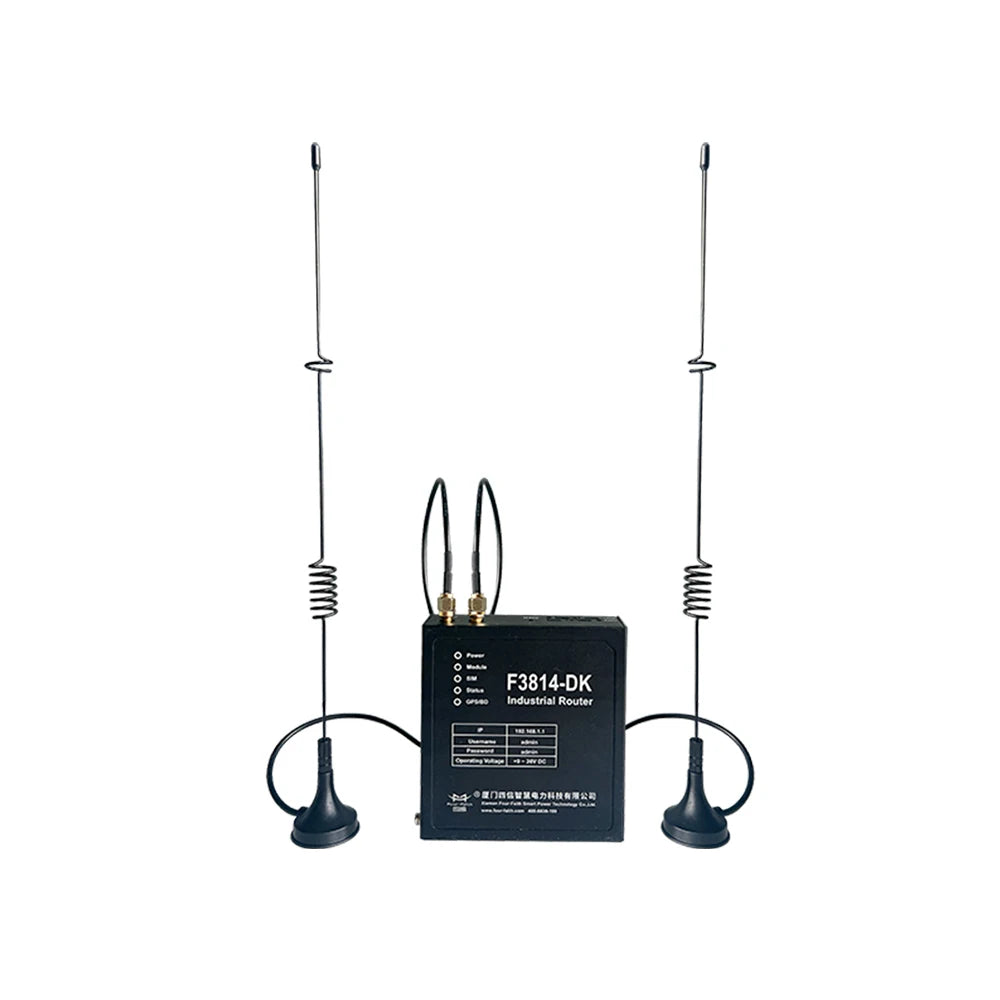

4G/5G Industrial Wireless Router for IoT & Smart Grid
4G/5G Industrial Wireless Router for IoT & Smart Grid
Regular price
$110.00 USD
Regular price
$110.00 USD
Sale price
$110.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overview

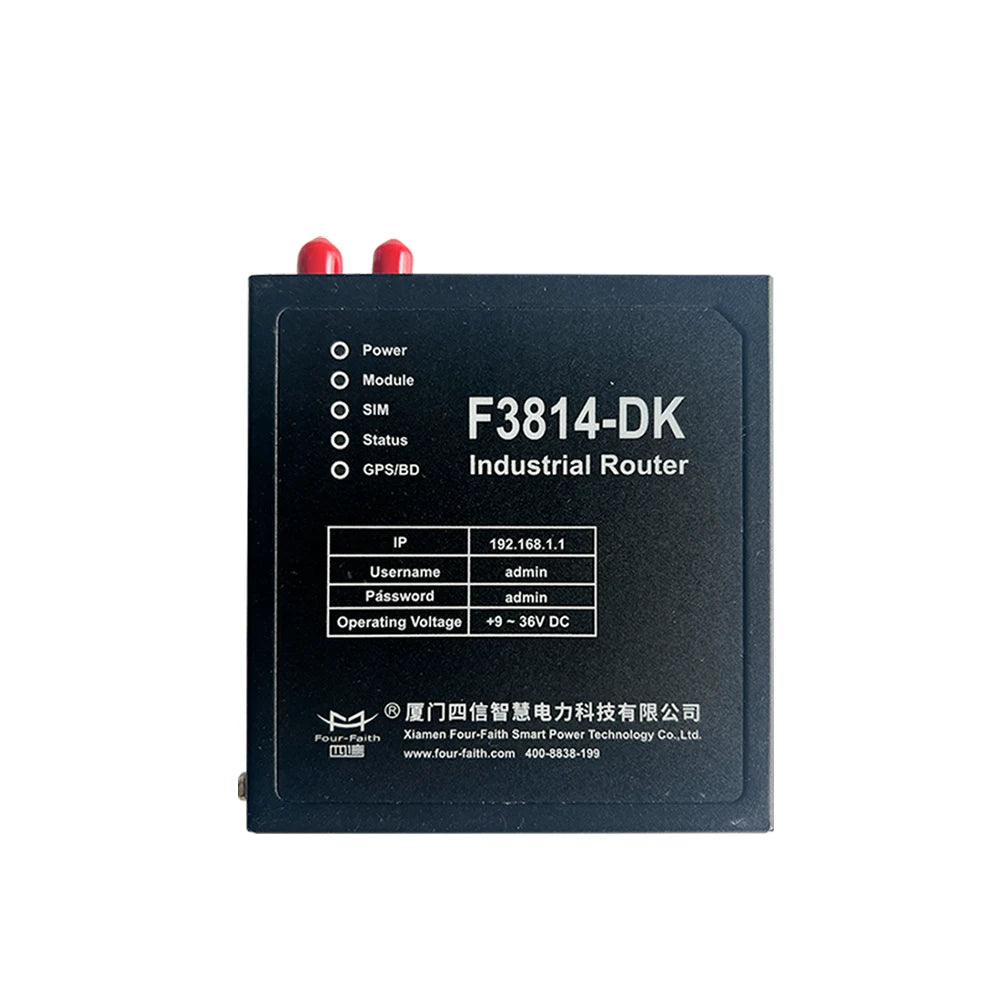

Industrial Wireless Router F3X14-DK series ROUTER is a wireless communication router for the Internet of Things, which uses public2.5G/3G/4G/5G cellular networks to provide users with wireless long-distance data transmission functions. The industrialized design meets the needs of most smart grids, provides reliable data transmission for the field of industrial automation, and creates a new field of power automation.
Feature and Benefit
Industrial design application
Powerful functions

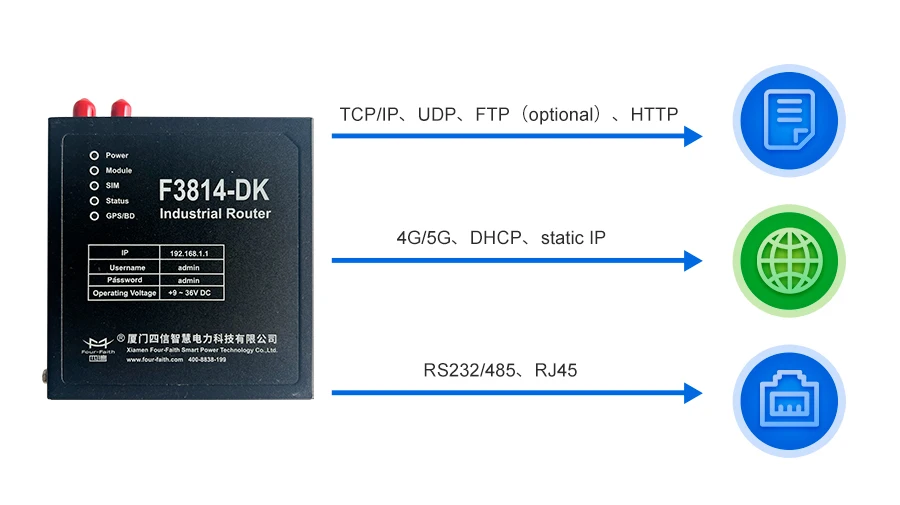

Protocol: Support TCP/IP, UDP, FTP (optional), HTTP and other network protocols;
Network: Support 4G/5G cellular network, DHCP, static IP, and other Internet access methods, providing reliable network
transmission;

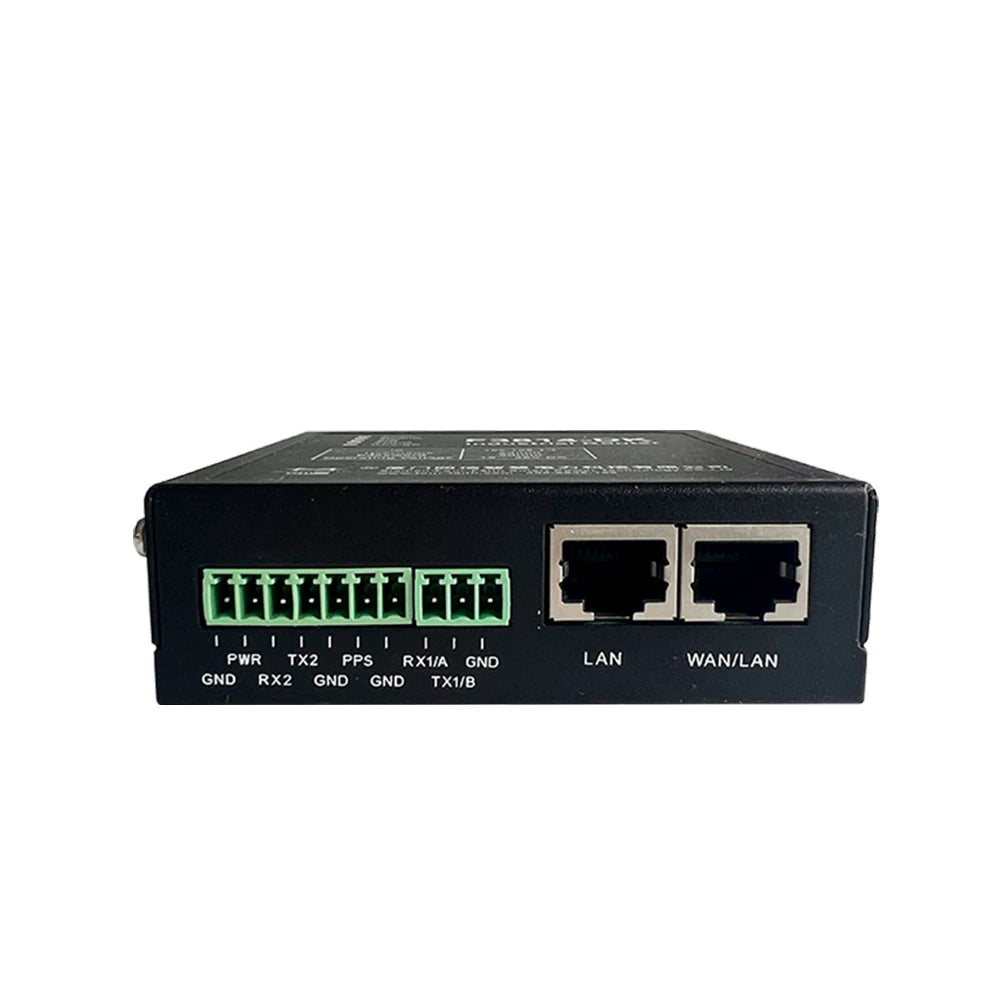

Interface: rich interface types, including RS232/485, RJ45 port, which can be used to connect various devices.
Network: Support 4G/5G cellular network, DHCP, static IP, and other Internet access methods, providing reliable network
transmission;
Interface: rich interface types, including RS232/485, RJ45 port, which can be used to connect various devices.
Diverse device management
Support devise web local/remote login management, meet the HTTP(s) standard protocol requirements;
Support remote telnet, SNMP, ssh, Syslog, and other equipment management methods to facilitate on-site equipment maintenance;

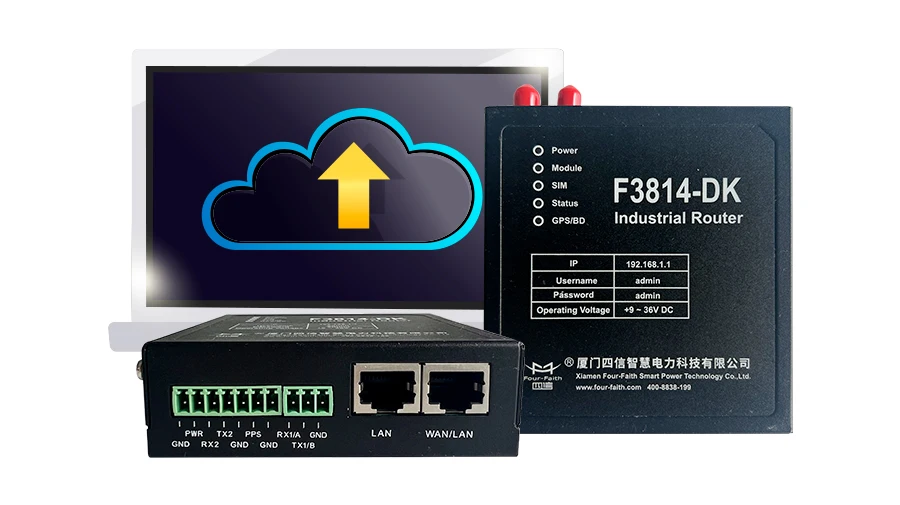

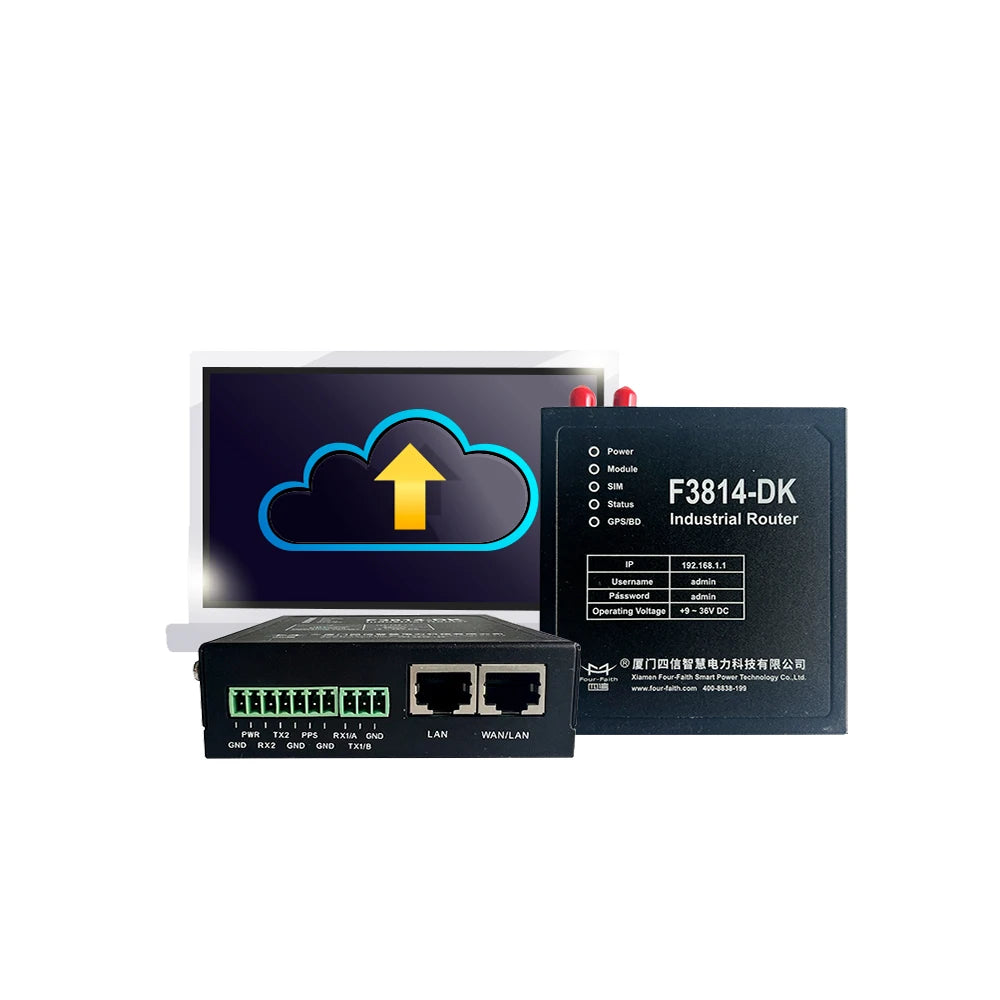

Provide remote upgrades, remote configuration, and other functions to provide a reliable guarantee for the safe operation of
equipment.
Support remote telnet, SNMP, ssh, Syslog, and other equipment management methods to facilitate on-site equipment maintenance;
Provide remote upgrades, remote configuration, and other functions to provide a reliable guarantee for the safe operation of
equipment.

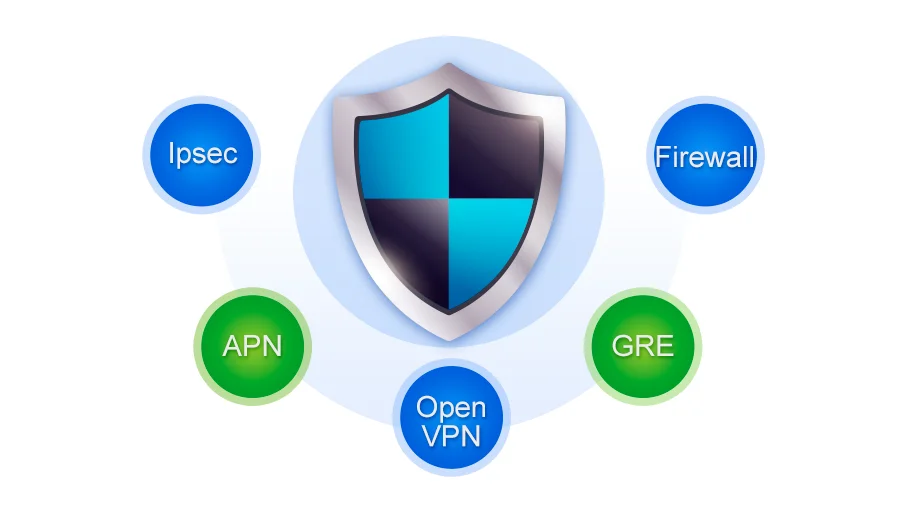

Data Security
Multi-level security strategy protects sensitive data and business-critical networks from attacks, provides you with a safe and
reliable network environment, supports multiple VPN tunnel connections, supports firewall functions, and effectively isolates
attack data; and device authority management to ensure safe access for customers.
reliable network environment, supports multiple VPN tunnel connections, supports firewall functions, and effectively isolates
attack data; and device authority management to ensure safe access for customers.
Technical Parameter
Items |
Contents |
Module |
Industrial grade wireless module |
Frequency |
5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 LTE:B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14 /B20/B25/B26/B28/B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71 |
Bandwidth |
5G NR: Downlink rate 100Mbps, uplink rate 100Mbps LTE FDD: downlink rate 100Mbps, uplink rate 40Mbps DC-HSPA+: Downlink rate 42Mpbs, uplink rate 5.76Mbps HSPA+: Downlink rate 21Mpbs, uplink rate 5.76 Mbps HSDPA: Downlink rate 7.2Mbps, HSUPA: Uplink rate 5.76Mbps |
UMTS：384Kbps |
|
Power |
< 23dBm |
Sensitivity |
<-97dBm |
GPS Parameters (optional) |
||
Items |
Contents |
|
Receiver type |
32 channel GPS L1，1575.42MHz； |
|
Data update rate |
1Hz |
|
Accuracy |
GPS<2.5m CPE50% (open field) GPS ONLY 3m CPE50% (open field) |
|
Capture |
Cold start: 32S Warm start: 1S Restart: 1S |
|
Sensitive |
Tracking: -160dBm Cold start: -148dBm |
|
Timing accuracy |
20ns |
|
Interfaces |
||
Items |
Contents |
|
Ethernet |
Ethernet 10/100M, in line with Fast Ethernet specification; lan port and wan port can be used interchangeably; |
|
Serial |
1 Channel RS232 serial port (configuration) 1 channel RS232 (optional with RS485) serial port (communication) parameters are as follows: Data bits: 5, 6, 7, 8 bits Stop bits: 1, 1.5 (optional), 2 bits Parity: no parity, even parity, odd parity Serial port rate: 2400~115200bits/s |
|

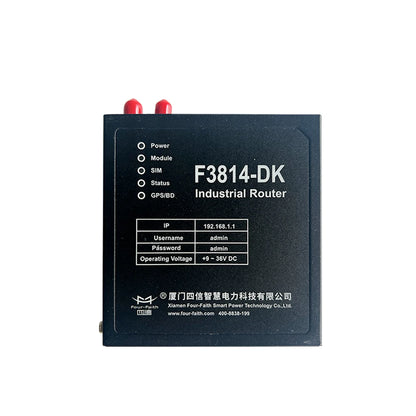

Indicators |
1 Power light (red), 1 network light (green), 1 SIM card light (green), 1 online light (green), 1 GPS signal light (green) |
|

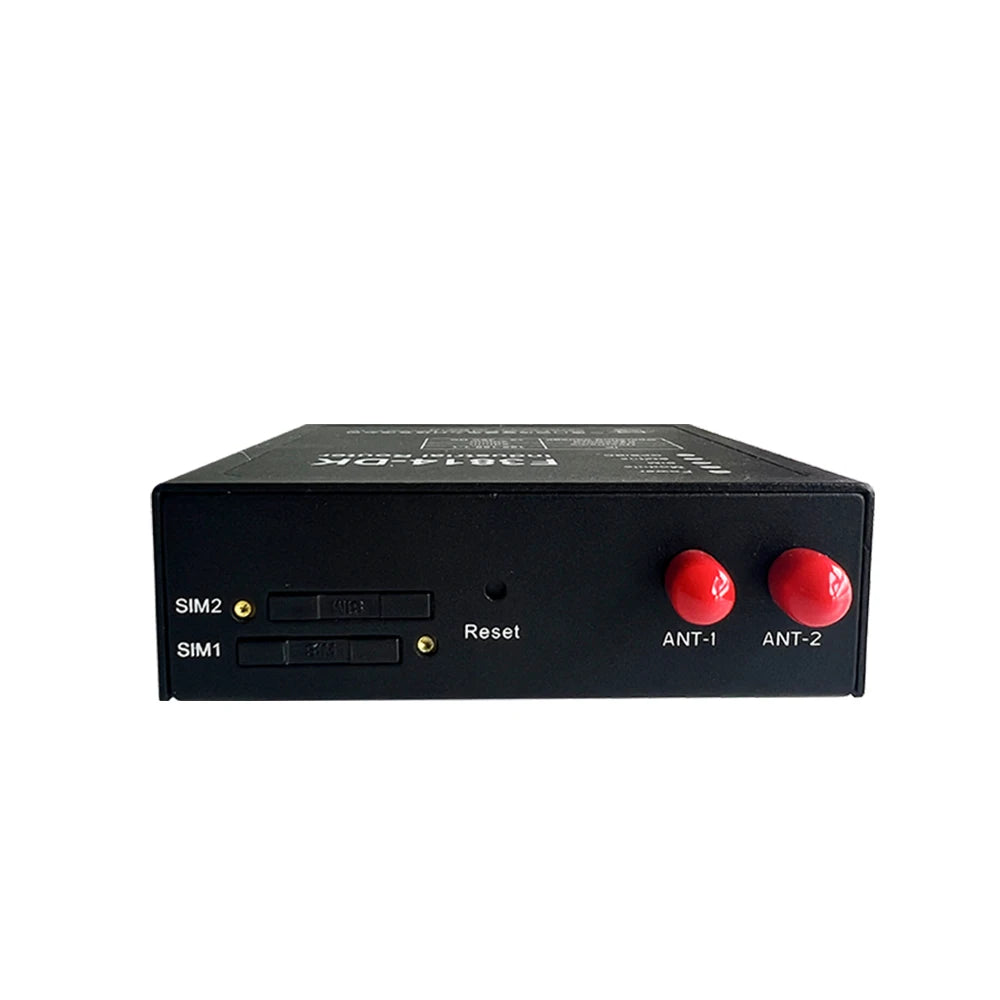

SIM/UIM |
2*Standard drawer type, 1.8V/3V SIM/UIM,15KV ESD protection |
|
Power |
DC9~36V(Optional 9~60V) |
|
Reset Button |
Through this button, the parameter configuration can be restored to the factory |
|
Physical Properties |
Hardware System |
||||
Items |
Contents |
Items |
Contents |
||
Shell |
Metal shell, IP30 |
CPU |
Industrial-grade 32-bit communication processor |
||
Size |
94x89x28 mm (Does not include antenna and mounting parts) |
FLASH |
16MB (expandable to 64MB) |
||
Weight |
310g |
DDR3 |
64MB |
||
Power Consumption |
Others |
||||
Items |
Contents |
Items |
Contents |
||
Standby |
95～135mA@12VDC |
Operating Temperature |
-35~+75ºC（-31~+167℉） |
||
Communication |
165～220mA@12VDC |
Storage Temperature |
-40~+85ºC（-40~+185℉） |
||
Relative Humidity |
95% (No condensation) |
||||
