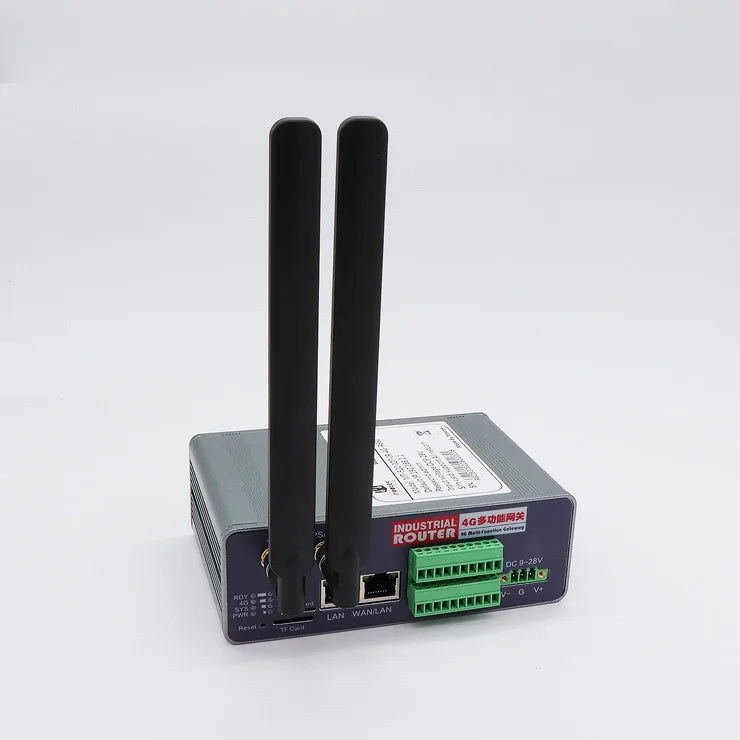

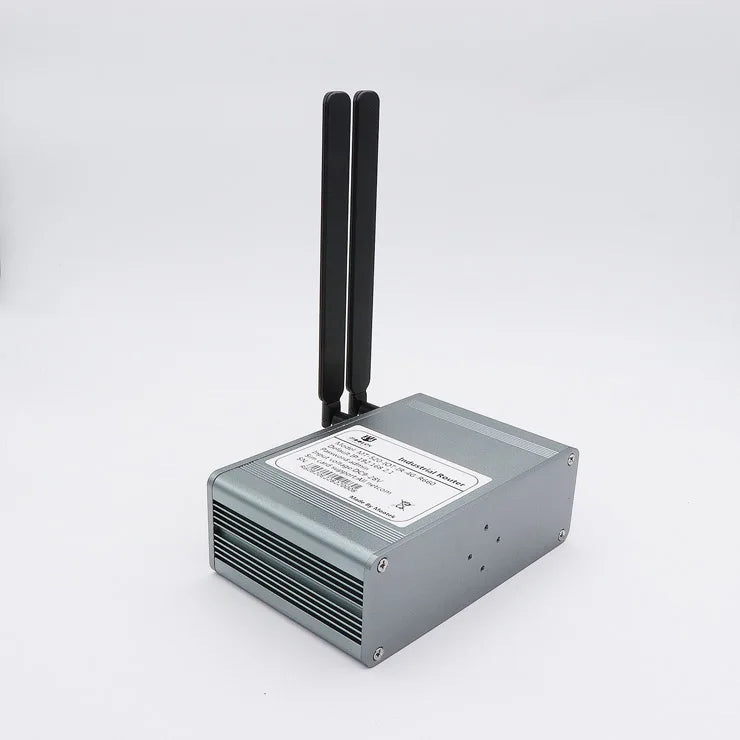

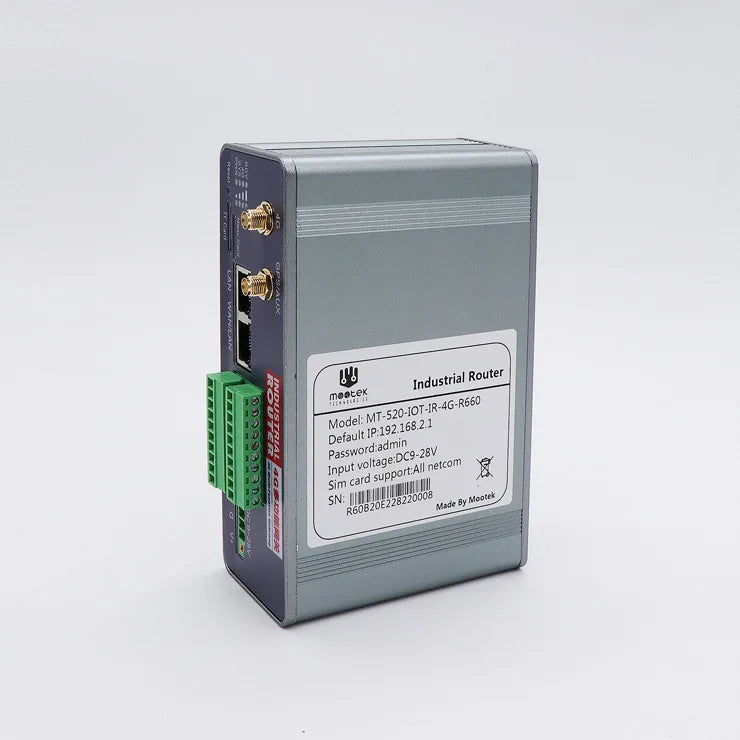

Cutting-Edge 4G IoT Router for Seamless Industrial Connectivity MT-520-IOT-IR-4G-R660
Cutting-Edge 4G IoT Router for Seamless Industrial Connectivity MT-520-IOT-IR-4G-R660
Regular price
$150.00 USD
Regular price
$150.00 USD
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description

Features:
* High-performance dual-core communication dedicated processor
* 2 x 10/100/1000M Ethernet LAN/WAN Ports
* 4G NR/LTE-FDD/LTE-TDD/HSPA+ Network
* NA/NSA Networking mode, China Mobile Unicom Telecom and other 4G networks
* 1 x NANO SIM card slot
* 1 x TF card slot, which can support up to 128GB capacity expansion
* 2 x RS232/485 serial port
* 4 x Digital input DI port, 2 x digital output DO ports
* Support DC9-28V input voltage
* Support 35MM standard DIN rail installation
* 2 x 10/100/1000M Ethernet LAN/WAN Ports
* 4G NR/LTE-FDD/LTE-TDD/HSPA+ Network
* NA/NSA Networking mode, China Mobile Unicom Telecom and other 4G networks
* 1 x NANO SIM card slot
* 1 x TF card slot, which can support up to 128GB capacity expansion
* 2 x RS232/485 serial port
* 4 x Digital input DI port, 2 x digital output DO ports
* Support DC9-28V input voltage
* Support 35MM standard DIN rail installation
Specification
Model Number |
MT-520-IOT-IR-4G-R660 |
CPU |
MTK dual-core 880MHZ CPU |
RAM |
2G bit RAM |
SPI FLASH |
16M (Bytes) Default |
Nand Flash |
128MB (Bytes) Optional |
TF Card Expansion |
Maximum support 128GB (Bytes) capacity expansion (optional) |
Firewall |
Network Address Translation (NAT) |
Media Access Control |
CSMA / CA with ACK |
VPN Protocol |
PPTP, L2TP, Open VPN Client |
DHCP |
Build-in DHCP (Dynamic Host Configuration Protocol) |
Others Protocol |
Supported PPP, PPOE, DDNS, ICMP, VRRP etc |
Characteristic |
FRP intranet penetration and Modbus protocol etc. |
Serial Port Standard |
Each channel supports RS232/485 standard, Connect the corresponding physical interface |
Serial Port Rate |
Each channel supports RS232/485 standard, Connect the corresponding physical interface |
Relative Humidity |
95% |
Size |
L*S*H: 144mm x 95mm x 50mm |
Install |
Support 35MM DIN rail installation |
