Industrial Rugged PDA with Android 15 MTK Octa-core CPU Barcode Scanner IP65 Handheld Data Terminal RFID NFC in Stock
Industrial Rugged PDA with Android 15 MTK Octa-core CPU Barcode Scanner IP65 Handheld Data Terminal RFID NFC in Stock
Regular price
$190.00 USD
Regular price
$190.00 USD
Sale price
$190.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Products Description

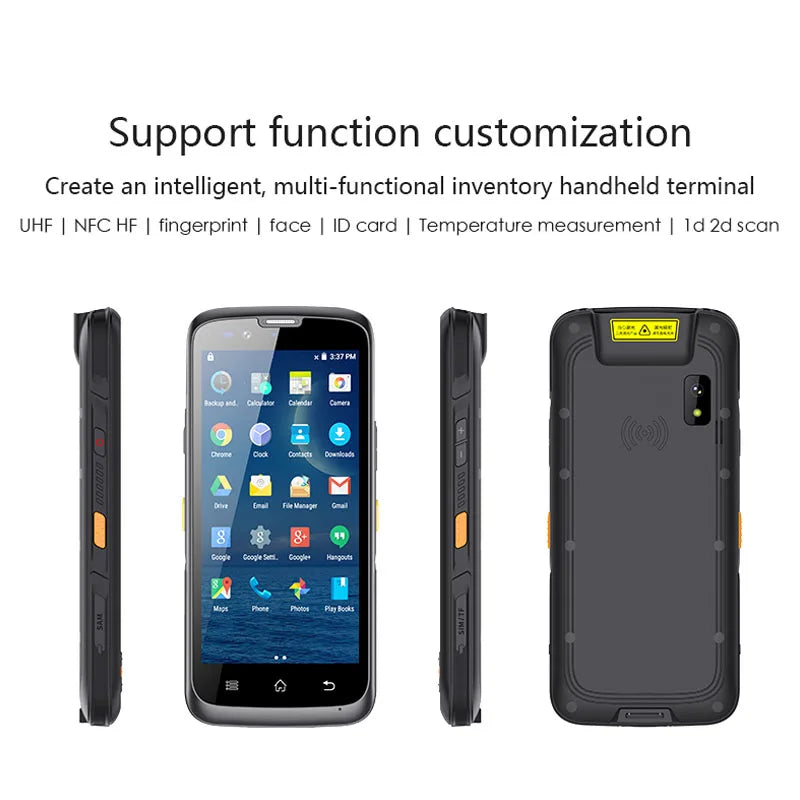

Product appearance |
||

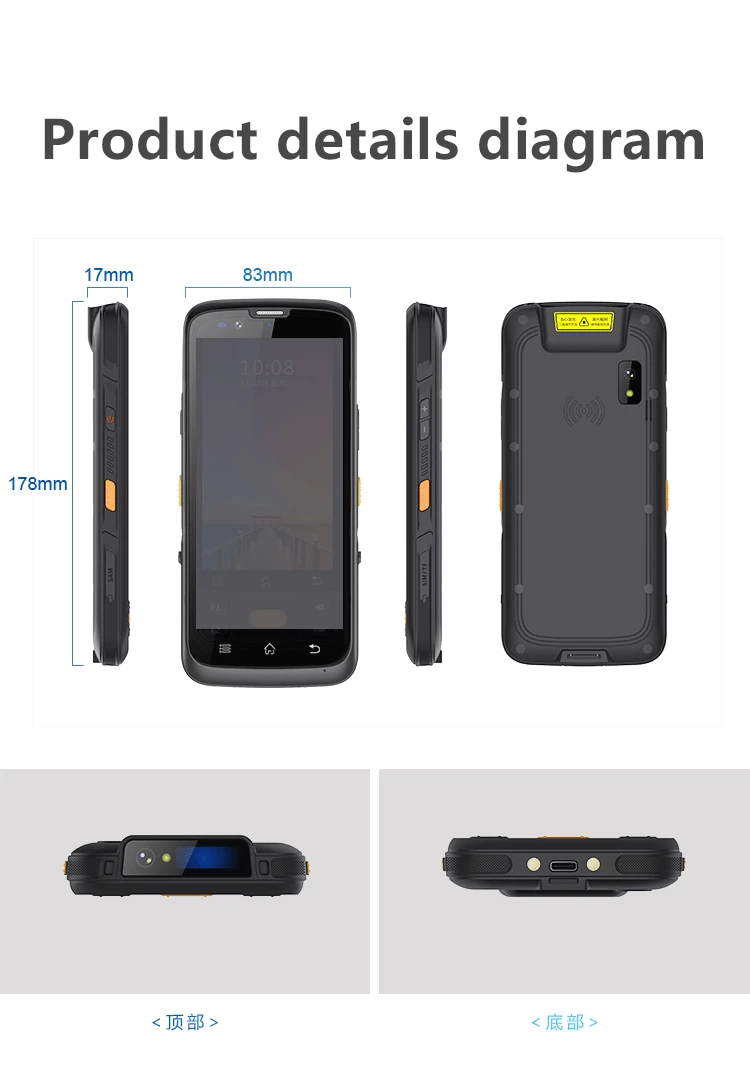

Dimensions |
178 x 83 x 17 mm / 7.0 x 3.27 x 0.67 in. |
|
Weight |
242g |
|
Color |
Black (bottom shell black, front shell black) |
|
Battery |
Main battery: Li-ion, rechargeable, 4300mAh Standby: over 300 hours Continuous use: over 8 hours (depending on user environment) Charging time: 1-2 hours (with standard adaptor and USB cable) |
|
LCD |
5.72#, 1440*720 |
|
Touch Panel |
Multi-touch panel, Corning grade 3 glass toughened screen |
|
Front camera |
5.0MP( optional） |
|
Rear camera |
13MP Autofocus with flash |
|
Built-in |
Built-in 8Ω/0.8W waterproof horn x 1 |
|
Built-in |
Sensitivity: -42db, output impedance 2.2kΩ |
|
System Hardware Configuration |
||
CPU |
MTK 6765- Octa-core, 2.3GHz |
|
RAM |
3GB (or 4G or 6G optional) |
|
ROM |
32GB (or 64G or 128G optional) |
|
Operating System |
Android 12/15 |
|
NFC |
Support ISO/IEC 下14443A protocol, card reading distance: 3-5cm |
|
GNSS |
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
|
Network connection |
||
WIFI |
WIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI, |
|
2G/3G/4G/5G |
CMCC 4M： LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8 |
|
Data Collection |
||
Fingerprint Optional |
Fingerprint module: capacitive USB press module |
|
Image size：256*360pi xei；FBI PIV FAP10 certification |
||
Image resolution：508dpi |
||
International standard |
||
Authoritative certification |
||
Acquisition speed: single frame image acquisition time ≤0.25s |
||
QR code Optional |
Honeywell 6603&zebra se4710&CM60 |
|
Optical resolution: 5mil |
||
Scanning speed: 50 times/s |
||
Support code type: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
||
LF |
Support 125k and 134.2k, effective recognition distance 3-5cm |
|
HF |
13.56Mhz, support 14443A/B;15693 agreement, effective recognition distance 3-5cm |
|
UHF |
CHN frequency：920-925Mhz |
|
US frequency：902-928Mhz |
||
EU frequency：865-868Mhz |
||
Protocol standard：EPC C1 GEN2/ISO18000-6C |
||
Antenna parameter：Ceramic antenna（1dbi） |
||
Card reading distance: according to different labels, the effective distance is 1~6m |
||
Identification of second generation ID card of Chinese Residents |
Support network version decryption ID card / Ministry of public security hard solution module |
|
Fingerprint acquisition |
Support capacitive finger press acquisition |
|
Face recognition |
Embed face recognition algorithm |
|

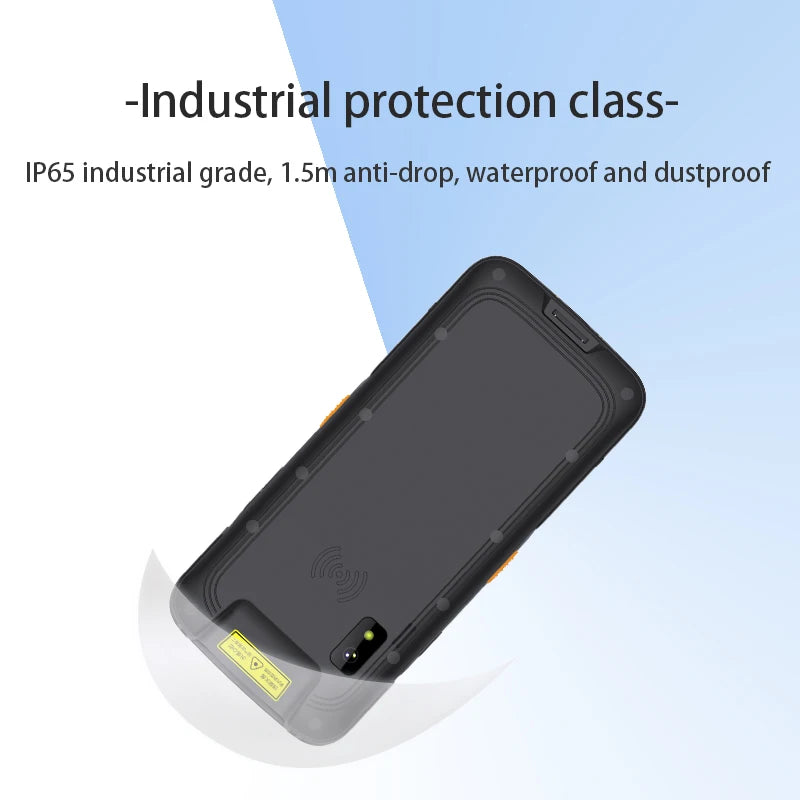

Reliability |
||

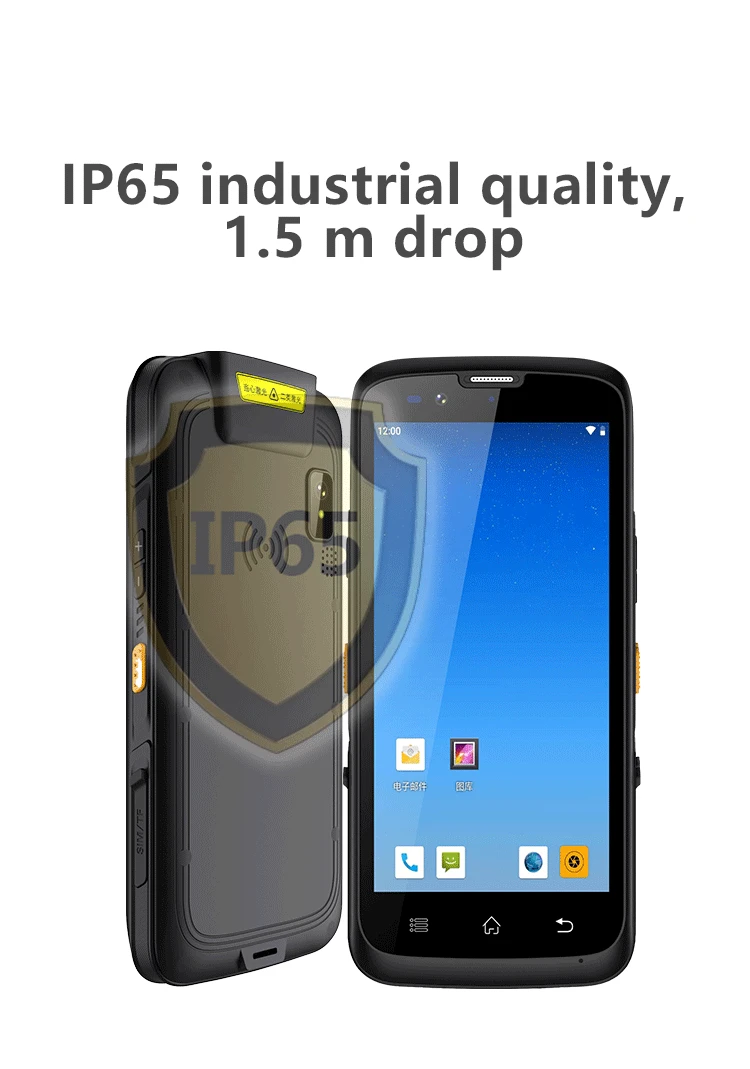

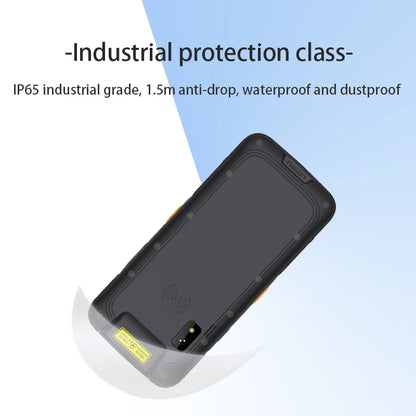

Drop height |
150cm power on status |
|
Operating Temp. |
-20 °C to 55 °C |
|
Storage Temp. |
-20 °C to 60 °C |
|
Humidity |
Humidity: 95% Non-Condensing |
|
Company Profile
Shenzhen Xlioniote Intelligent Identification Technology Co., LTD was established in 2015. We have been dedicated to the R&D,production and sales of IoT smart handheld terminal products, including PDAs, RFID handheld devices, data terminals, barcode scanners and rugged industrial tablets. Our company is located in Shenzhen and covers the global market. We have been committed to the IoT terminal industry for 10 years and have OEM/ODM customization capabilities. We have also obtained over 30 patent certificates, including the National High-tech Enterprise Certificate, ISO90001 system, and Utility Model patents. The products are equipped with certificates such as CE, FCC, CCC and RoHS. Our products have over 3,000 customer cooperation experiences in China and are exported to various countries and regions, including North America, Western Europe, Oceania and Southern Europe. We adhere to the principle of mutual benefit and enjoy a good reputation among our customers because we provide professional services, high-quality products and competitive prices. We warmly welcome domestic and foreign customers to cooperate with us to achieve common success.

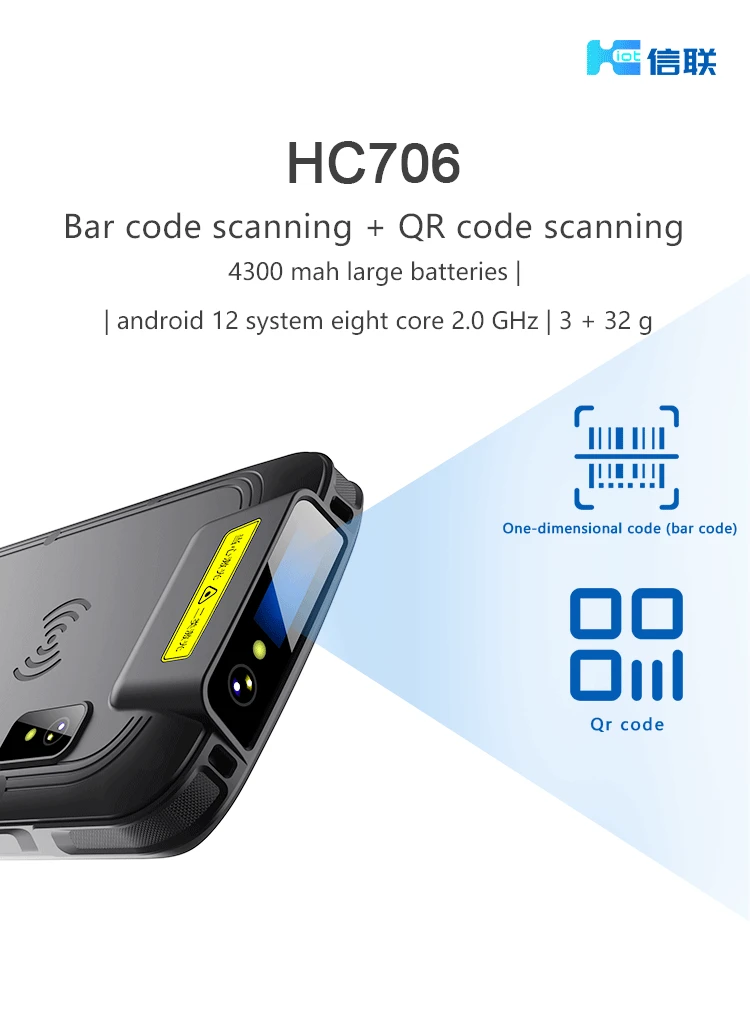

Details Images

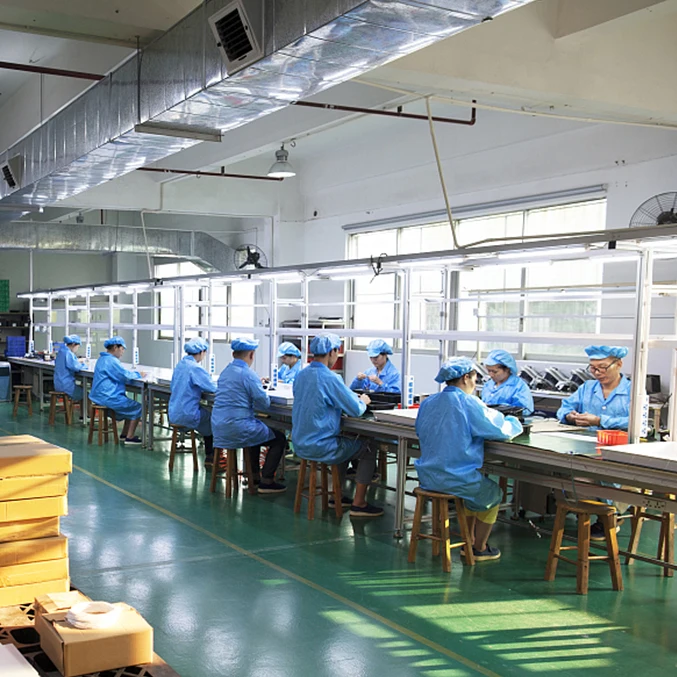

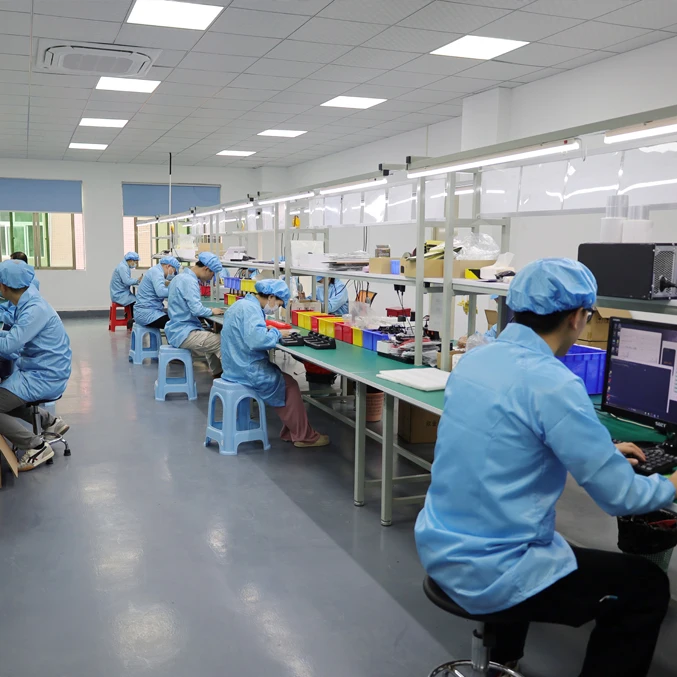

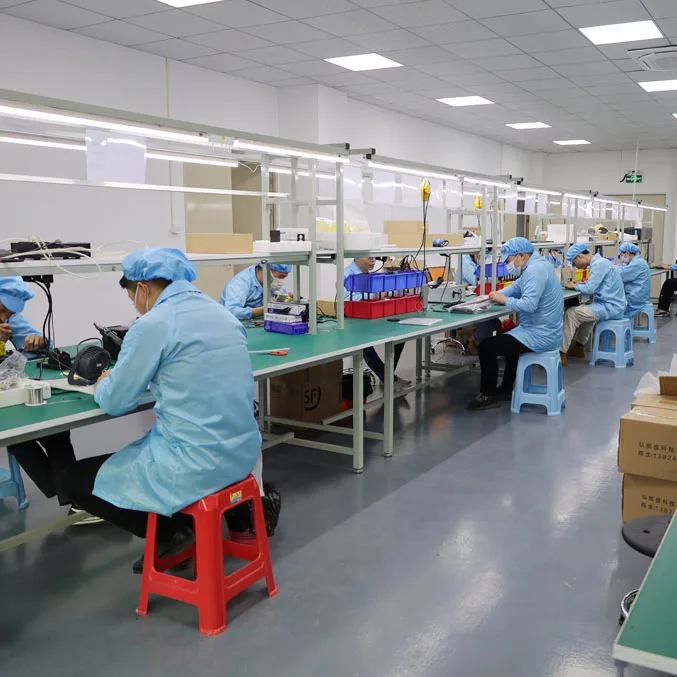

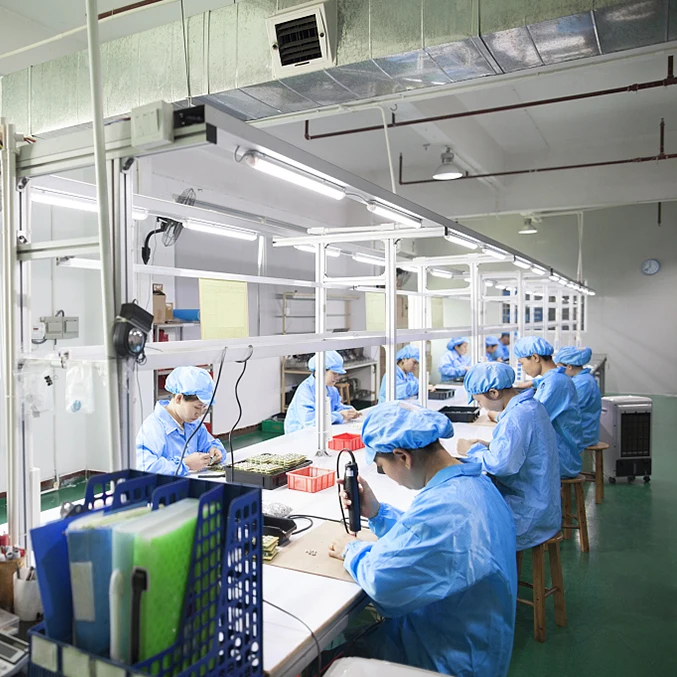

Factory Display
Certifications

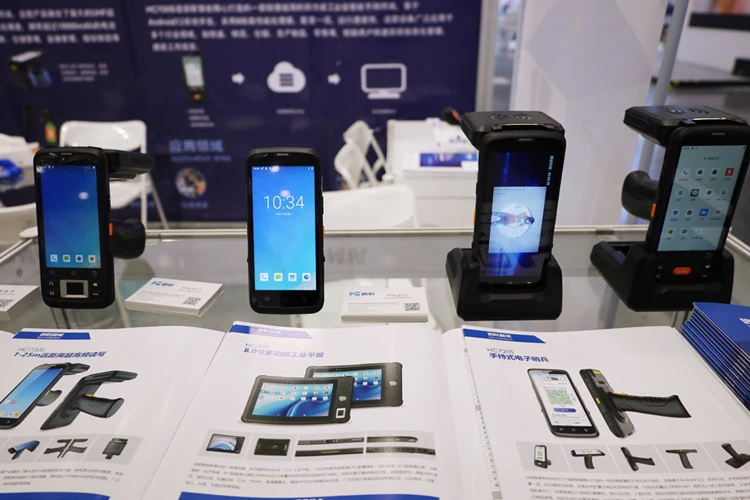

Exhibition
Shipping & Payment
FAQ
Q1: Are you manufacturer?
A: Yes, Xinlian one of the pioneering manufacturer focusing on UHF RFID hardware design and manufacture since from 2015.
Q2: What are your mainly products?
A: Our products mainly include UHF RFID reader, industrial tablet, handheld printer, product support with UHF RFID module R2000 series, UHF RFID module E710 series.
Q3: What is your advantage?
A: We have served many customers in many application fields, with a wide and rich experience. we have strong technical team for technical support. We often provide customized service for special needs.
Q4: How to place order to Xinlian?
A: You can place order to us through Alibaba trade assurance order online or you can contact our sales for other ways. We also can accept payment by TT, West Union, credit card or PayPal and other payment methods.
Q5: What is the MOQ?
A: We don’t have MOQ limit, you can buy one sample for testing.
Q6: Can I choose multiple function into 1 device?
A: Yes, different functions depending on the product model, optional functions:RFID (LF/HF/UHF) Fingerprint / Bar code scanner, etc.
Q7: What codes can be read by the handheld?
A: Support code type: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse.
Q8: Do you have certifications?
A: Yes, Silion products have applied FCC, CE, SRRC, RoHS and other related certifications.
Q9: What’s your lead time?
A: For small orders, we normally have goods in stock, delivery time is very fast, around 2-3 working days after order confirmed; If need to produce, it depends on quantity, pls feel free to contact us to know more.
Q10: Do you provide after-sales service?
A: Yes, Xinlian has a professional technical support team, with rich experience in development and application, we can provide a full range of services according to customer needs. If you have any questions, you can contact us at any time and we can support by mail, voice call or fly to your country (to be determined), for the hardware problem, we could send the parts or components and teach customer to fit or send back to us to fix it.
