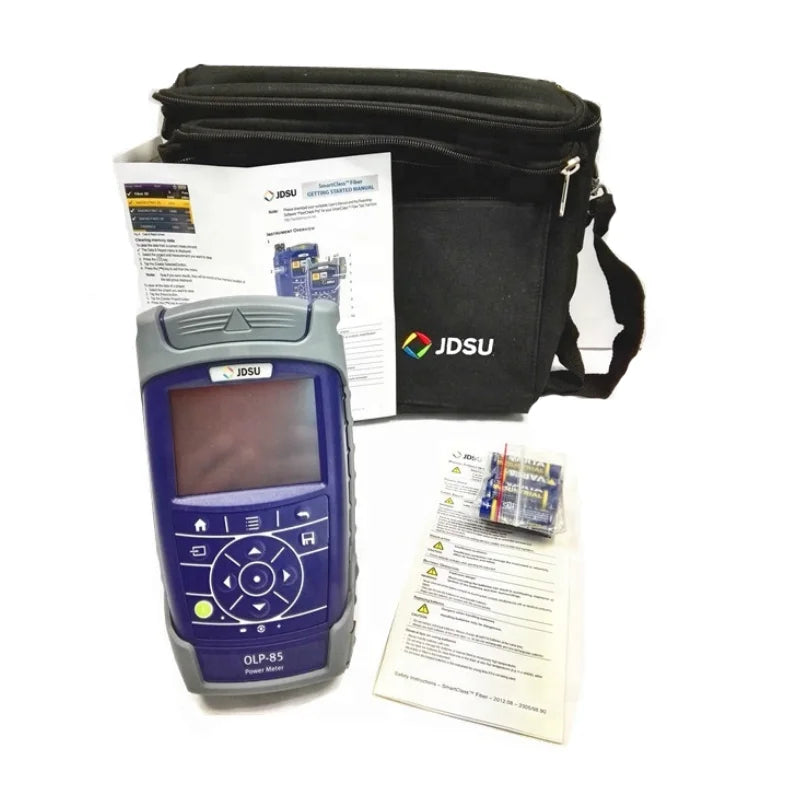

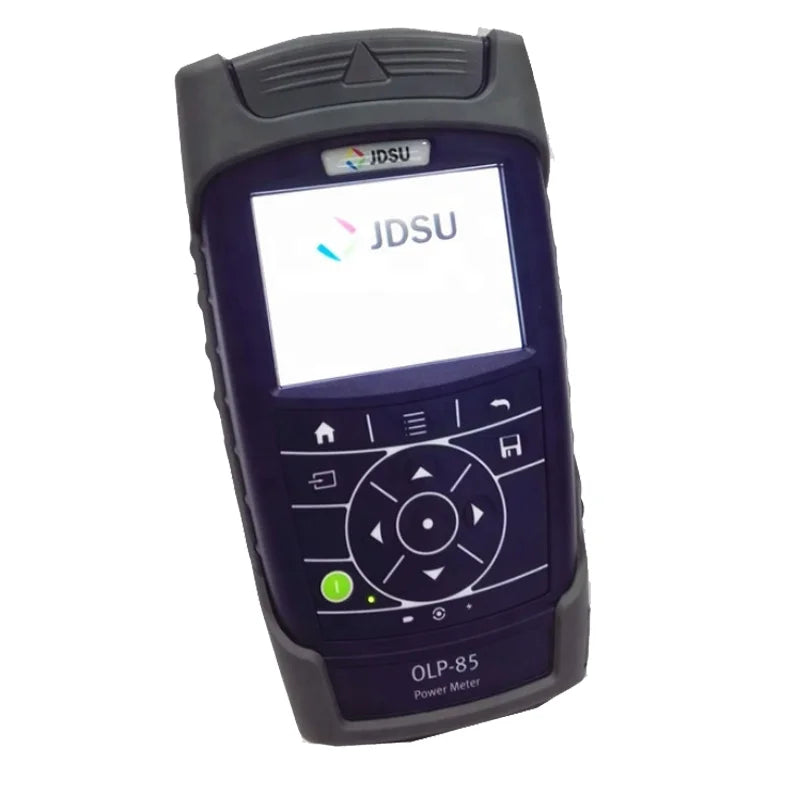

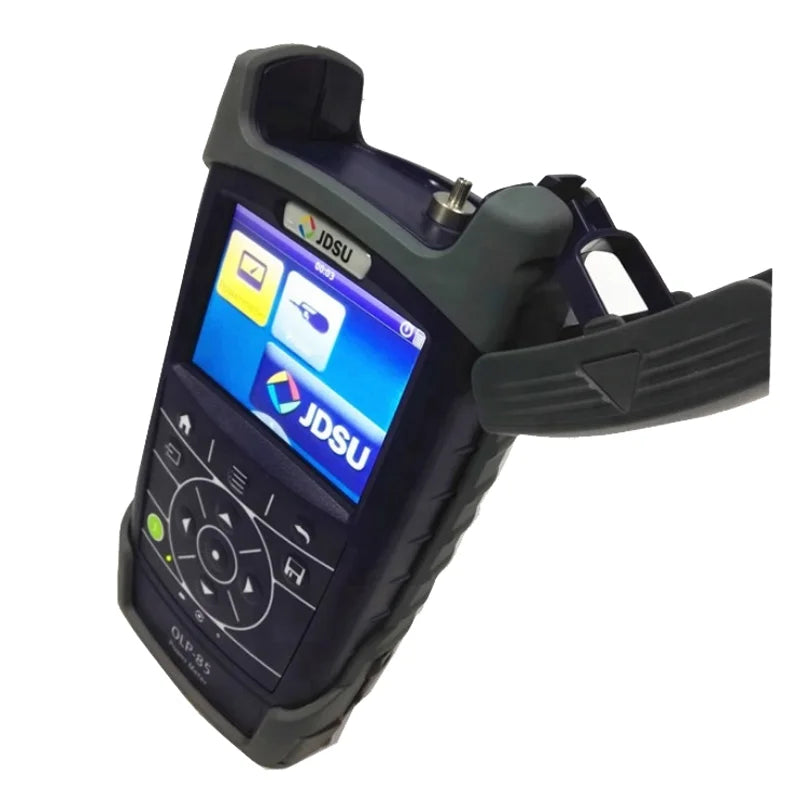

Original JDSU OPM OLP-85P Optical Power Meter for FTTH Use 800-1700nm Wavelength Range

       The SmartClass™ Fiber OLP-85 and -85P combine pass/fail fiber inspection and optical power measurement (OPM) into one solution. With a 100 dB dynamic range, the OLP-85 and -85P handheld optical power meters are professional, versatile, and compact instruments perfect for any fiber-optic network power or loss test applications. Their high accuracy over the entire range means that the OLP-85 and -85P perfectly fit applications where low power or very high power needs to be measured.

Benefits

• Complete jobs faster, correctly, and on time—right the first time
• Automated pass/fail fiber inspection analysis with the optional P5000i microscope, also available with integrated PCM
• Compact, rugged, weather-proof design

Applications:

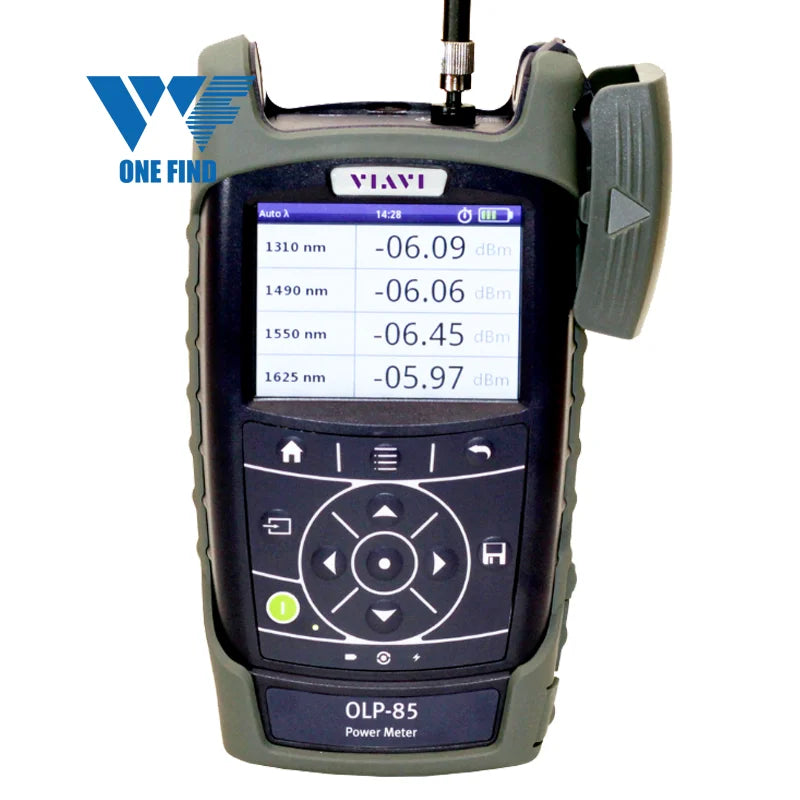

• Measurement of optical power (absolute and relative)
• Measurement of  optical insertion loss together with a Viavi optical light source OLS-3x or OLS-8x
• Inspection of optical connectors (IBYC)
• In-service loss test option

Key Features:

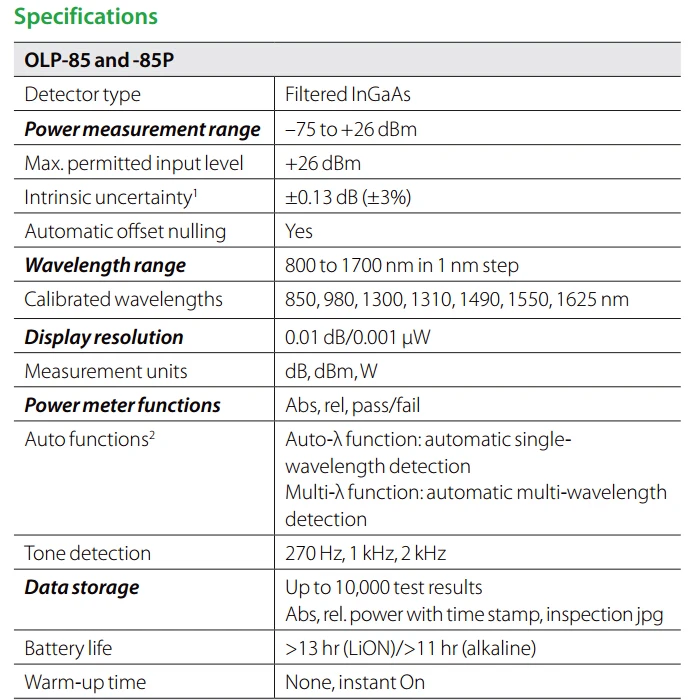

• Battery-operated field-portable optical power meters with an 800 to 1700 nm measurement wavelength range (1 nm incremental setting) and high accuracy over an ultra-wide 100 dB dynamic range
• 2.5 mm and optional 1.25 mm universal push-pull (UPP) adapter system compatible with all optical connector types

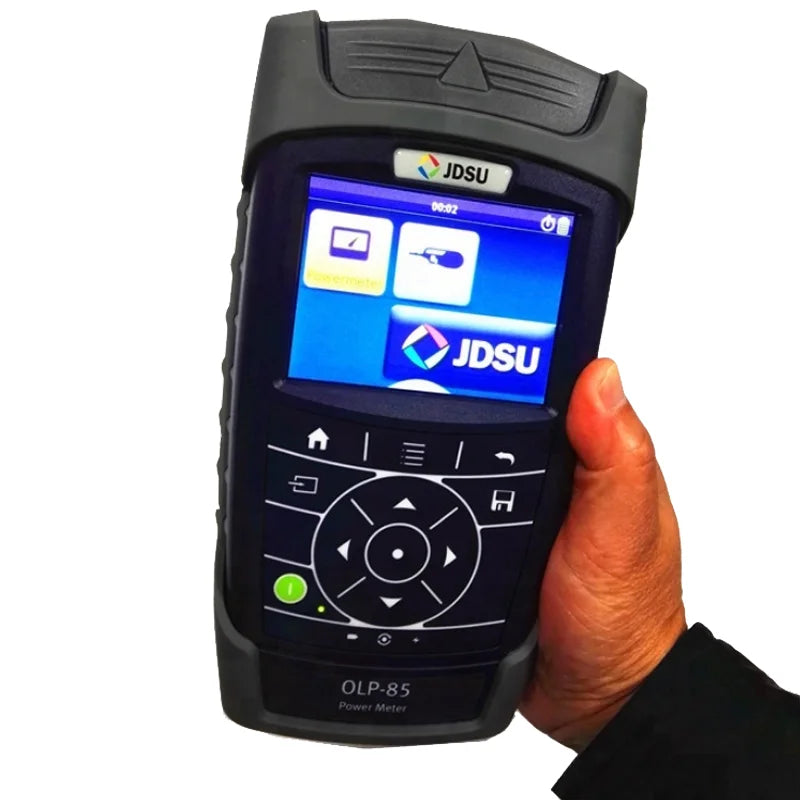

• 3.5-in color touch screen with integrated stylus
• Individual threshold settings for power and loss pass/fail analysis
• Onboard fiber inspection and test results storage with time stamp

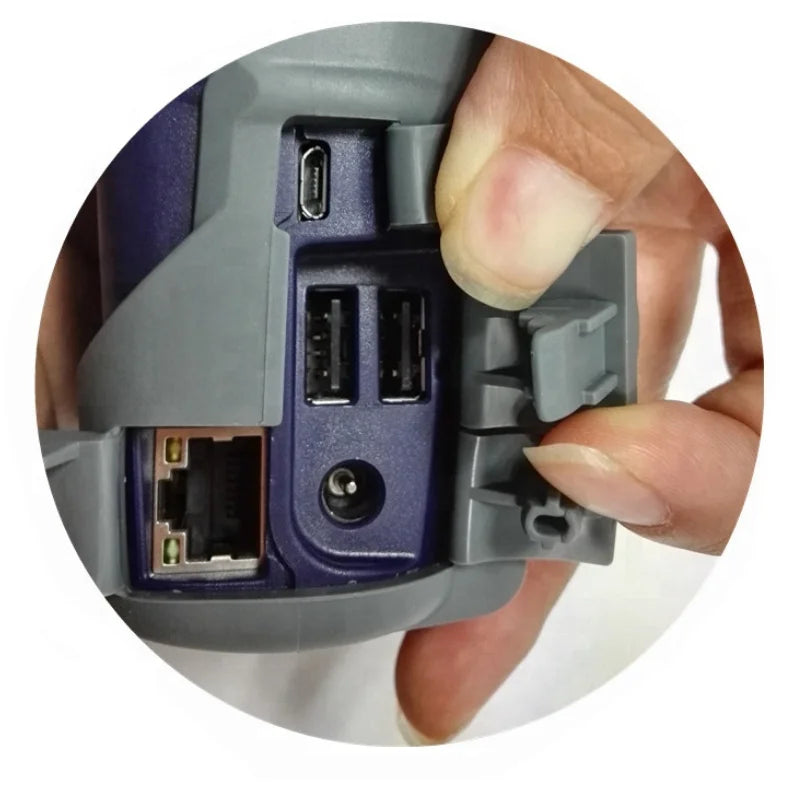

• Data transfer and remote control via USB or Ethernet interface
• Auto-lambda and multi-lambda test functions in combination with Viavi light sources
