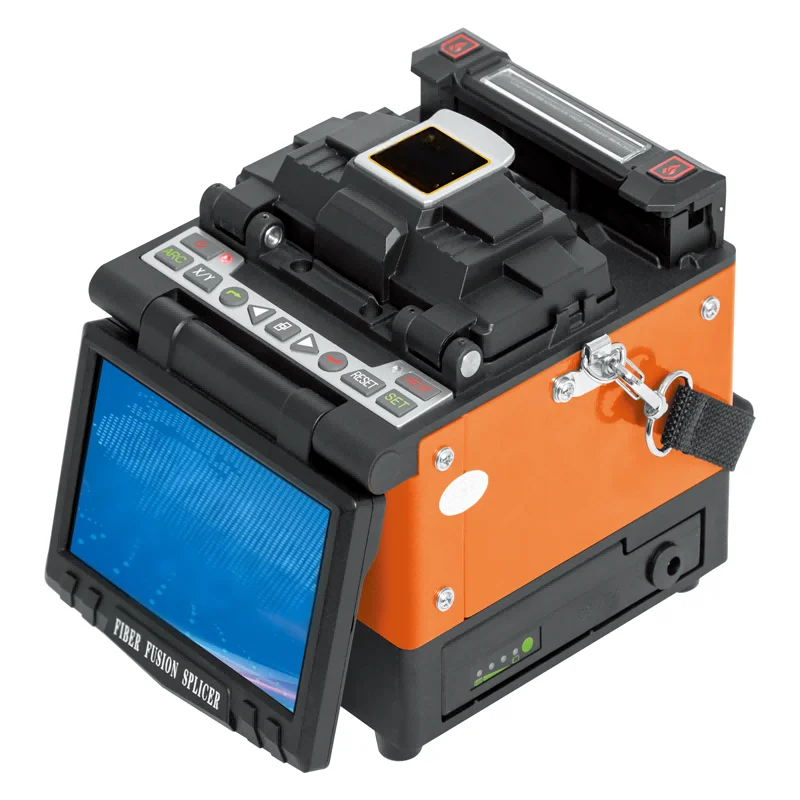

Precision Small Diameter High Power Laser Fiber Fusion Splicer 30 50 60 80 Um Large Core 125 200 400 600 Um Splicing Machine
Precision Small Diameter High Power Laser Fiber Fusion Splicer 30 50 60 80 Um Large Core 125 200 400 600 Um Splicing Machine
Regular price
$7,114.00 USD
Regular price
$7,114.00 USD
Sale price
$7,114.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

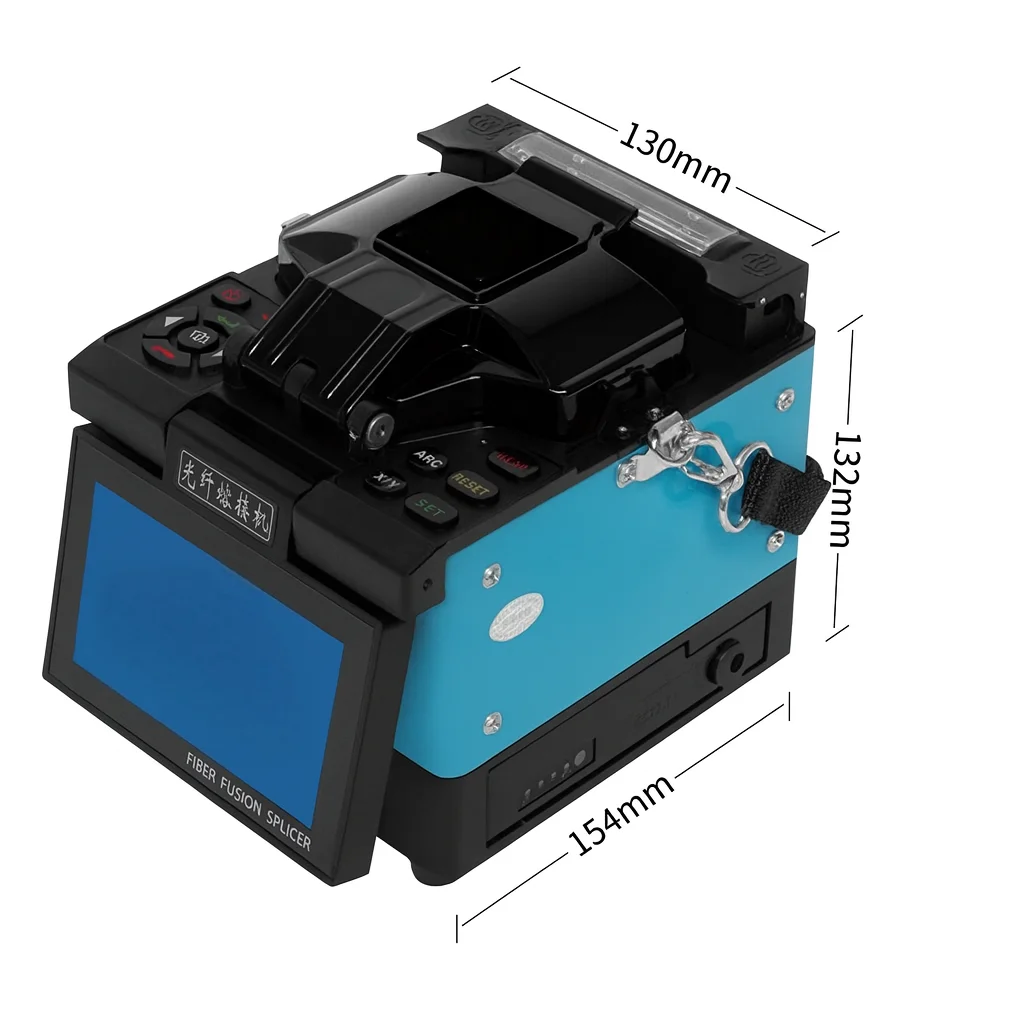

Product Description
Specification
1. Manual correction and real-time automatic ARC correction are optional.
2. High-power dual lighting design, convenient for night operation.
3. The discharge arc is compensated in real time based on air pressure, environmental, and temperature parameters.
4. Two cameras can simultaneously observe the X-axis and Y-axis directions to achieve fiber alignment.
5. High-resolution 4.3-inch color LED touch screen, multilingual interface customizable.
6. Equipped with two USB ports for data transfer or external construction lighting.
7. Two 12V power ports; both the internal battery and external power supply can be used directly.
2. High-power dual lighting design, convenient for night operation.
3. The discharge arc is compensated in real time based on air pressure, environmental, and temperature parameters.
4. Two cameras can simultaneously observe the X-axis and Y-axis directions to achieve fiber alignment.
5. High-resolution 4.3-inch color LED touch screen, multilingual interface customizable.
6. Equipped with two USB ports for data transfer or external construction lighting.
7. Two 12V power ports; both the internal battery and external power supply can be used directly.
Model |

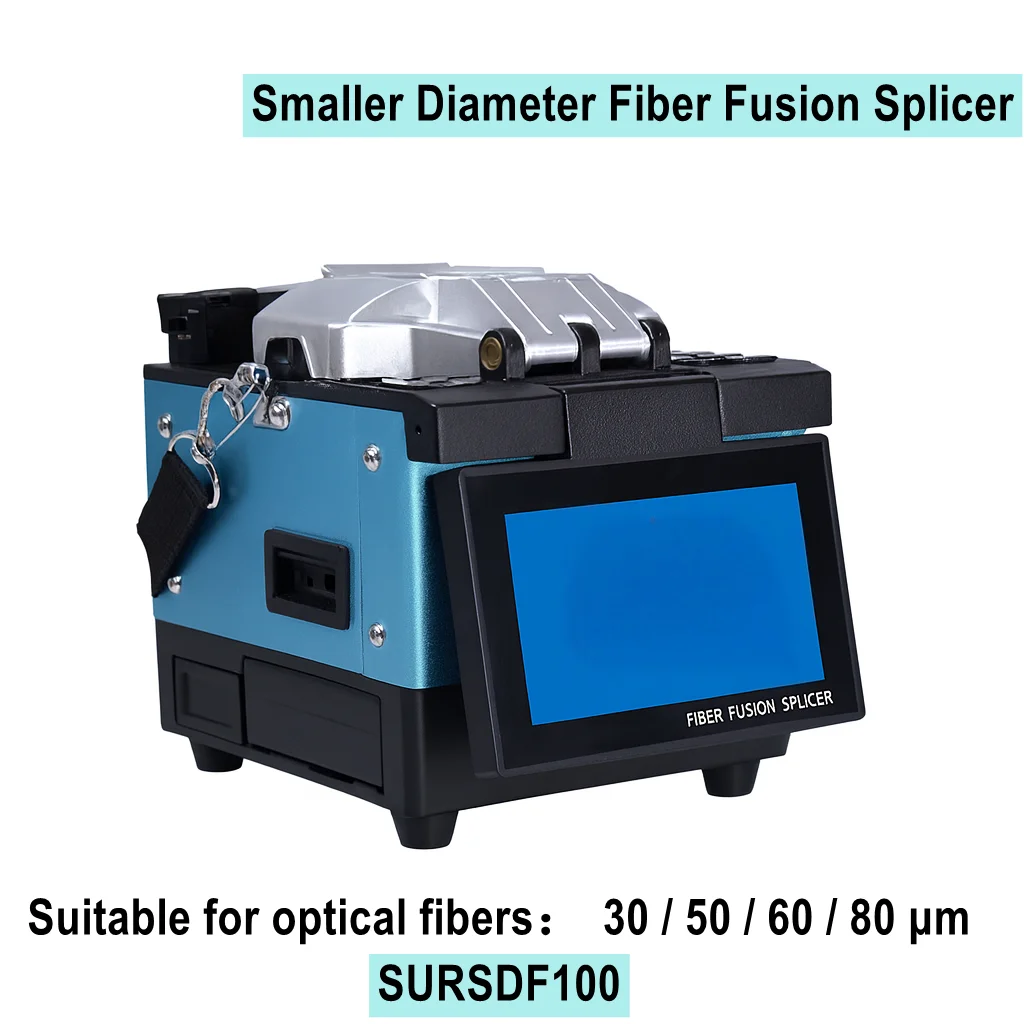

SURSDF100 |
Applicable fiber |
SM (single mode), MM (multimode) |
||
Weight |
1.65KG (including battery) |
Return loss |
>60dB |
||
Electrode life |
Around 3000 ARC discharges |
Splicing loss |
0.02dB (SM), 0.01dB (MM) |
||
Heat-shrink tube |
60/40mm and other miniature tube |
Data storage |
10000 groups data records and 200 group images |
||
Typical heat time |
20s (60mm) |
Tension test |
2N |
||
Typical splice time |
8–10s |
||||
Fiber diameter |
Cladding: 50–80μm; Coating: 60–100μm |
||||
Cutting length |
8–16mm (Coating diameter <250μm) |
||||
Fiber magnification |
300X (X or Y view), 150X (X and Y view) |
||||
Operating condition |
Temperature: −10℃~+50℃; Humidity: <95%; Altitude: 0~5000m; Wind: max 15m/s |
||||
Power supply |
AC adapter, input AC100–240V (50/60Hz); output DC13.5V/4.5A; Battery capacity: 5200mAh Li-battery, 11.1V |
||||
1. Artificial calibration and real-time ARC automatic calibration are optional.
2. High-power double lamps design makes it more convenient for night operation.
3. 12V power port, external power supply directly.
4. Electrical discharge ARC makes real-time compensation according to the pressure, environment and temperature parameter.
5. Two cameras can observe X axes and Y axes at the same time.
6. High resolution 5 inch color LED touch screen, multi languages are customizable.
7. 2 USB ports: one for data transmission, one for power supply of LED light.
2. High-power double lamps design makes it more convenient for night operation.
3. 12V power port, external power supply directly.
4. Electrical discharge ARC makes real-time compensation according to the pressure, environment and temperature parameter.
5. Two cameras can observe X axes and Y axes at the same time.
6. High resolution 5 inch color LED touch screen, multi languages are customizable.
7. 2 USB ports: one for data transmission, one for power supply of LED light.

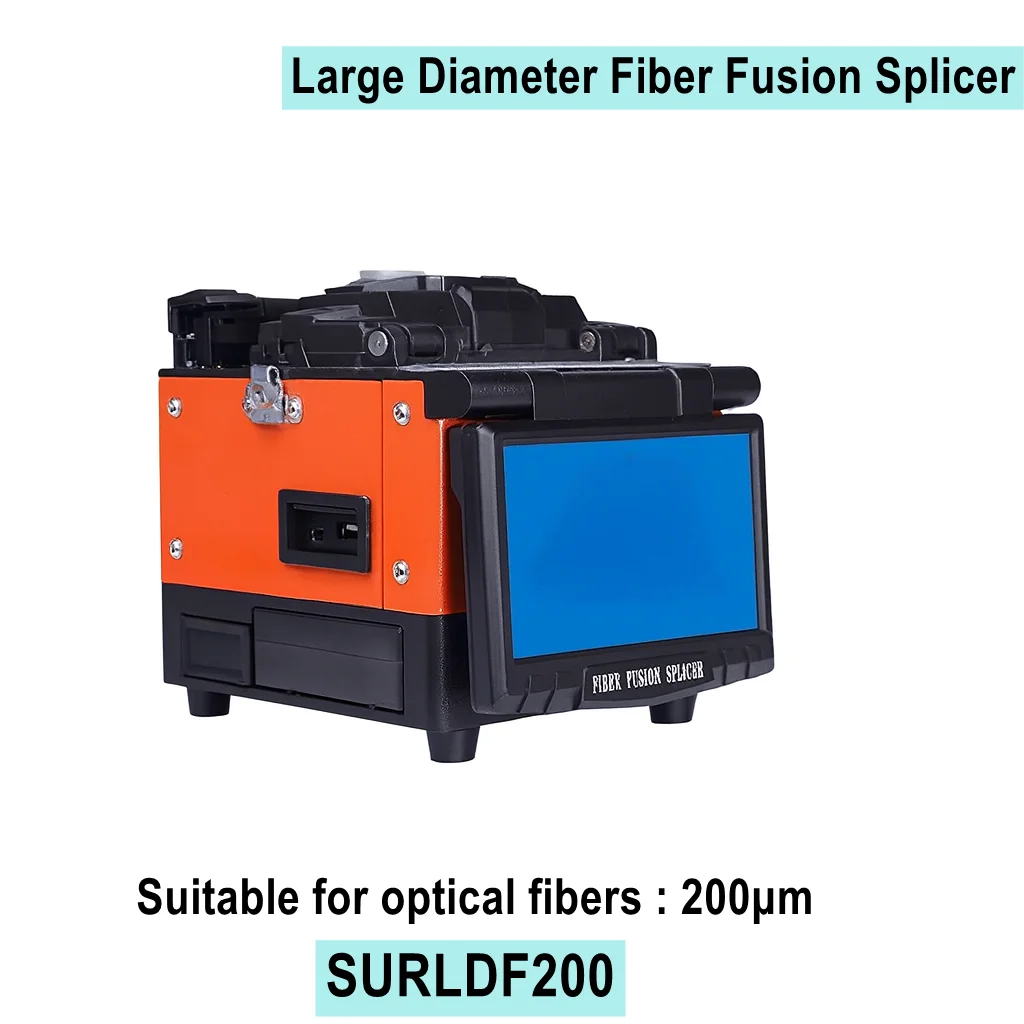

Model |
S200LDF |
Applicable fiber |
SM; MM; DS; NDZS |
||
Weight |
1.95KG (including battery) |
Return loss |
>60dB |
||
Electrode life |
Typical 3000 times discharge |
Fiber diameter |
Cladding diameter: 125~250μm |
||
Heat-shrink tube |
60/40mm and other miniature tube |
Data storage |
10000 groups data records and 200 group images |
||
Typical heat time |
≤30s (60mm) |
Tension test |
Typical 2N |
||
Typical splice time |
≤9s |
||||
Typical splice loss |
0.02dB(SM); 0.01dB(MM); 0.04dB(DS); 0.04dB(NDZS) |
||||
Cutting length |
8–16mm (Coating diameter ≤250μm); 16mm (Coating diameter 250–1000μm) |
||||
Fiber magnification |
X or Y single fiber image: 300X; X and Y double image: 150X |
||||
Operating condition |
Temperature: −10℃~+50℃; Humidity: <95%; Altitude: 0–5000m; Wind: max 15m/s |
||||
Power supply |
AC adapter, input AC100–240V (50/60Hz); output DC13.5V/4.5A; Battery capacity: 5200mAh Li-battery, 11.1V |
||||
1. Artificial calibration and real-time ARC automatic calibration are optional.
2. High-power double lamps design makes it more convenient for night operation.
3. Electrical discharge ARC makes realtime compensation according to the pressure, environment and temperature parameter.
4. Two cameras can observe X axes and Y axes at the same time.
5. High resolution 5 inch color LED touch screen, multi languages are customizable.
6. 2 USB ports: one for data transmission, one for power supply of LED light.
7. Two 12V power ports, battery or external power supply directly.
2. High-power double lamps design makes it more convenient for night operation.
3. Electrical discharge ARC makes realtime compensation according to the pressure, environment and temperature parameter.
4. Two cameras can observe X axes and Y axes at the same time.
5. High resolution 5 inch color LED touch screen, multi languages are customizable.
6. 2 USB ports: one for data transmission, one for power supply of LED light.
7. Two 12V power ports, battery or external power supply directly.
Model |

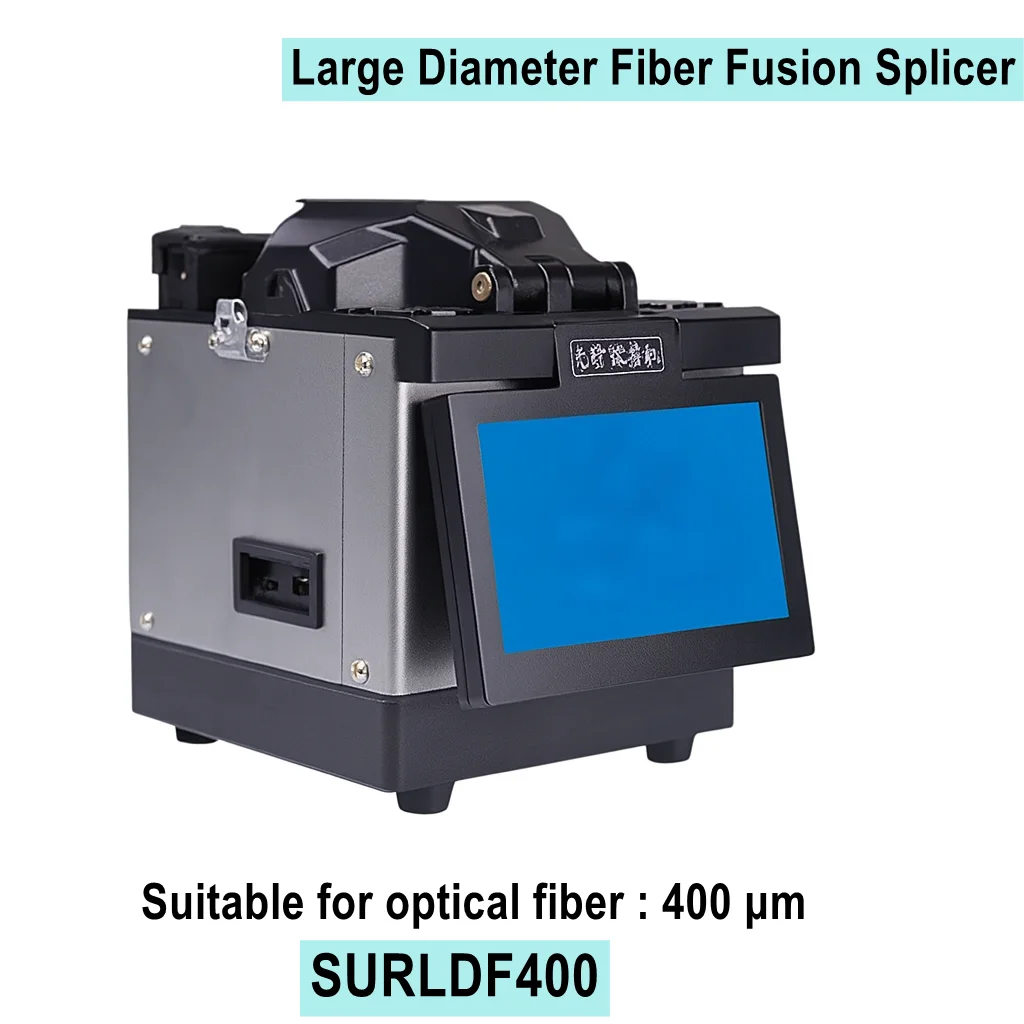

SURLDF400 |
Applicable fiber |
SM; MM; DS; NDZS |
||
Weight |
2.4KG (including battery) |
Return loss |
>60dB |
||
Electrode life |
Typical 3000 times discharge |
Fiber diameter |
Cladding diameter: 125–500μm |
||
Heat-shrink tube |
60/40mm and other miniature tube |
Data storage |
10000 groups data records and 200 group images |
||
Typical heat time |
20s (60mm) |
Tension test |
Typical 2N |
||
Typical splice time |
8–10s |
||||
Typical splice loss |
0.02dB(SM); 0.01dB(MM); 0.04dB(DS); 0.04dB(NDZS) |
||||
Cutting length |
8–16mm (Coating diameter ≤250μm); 16mm (Coating diameter 250–1000μm) |
||||
Fiber magnification |
X or Y single fiber image: 300X; X and Y double image: 150X |
||||
Operating condition |
Temperature: −10℃~+50℃; Humidity: <95%; Altitude: 0–5000m; Wind: max 15m/s |
||||
Power supply |
AC adapter, input AC100–240V (50/60Hz); output DC13.5V/4.5A; Battery capacity: 5200mAh Li-battery, 11.1V |
||||
1. Six motor core to core, core adjustment, center alignment.
2. Artificial calibration and real-time ARC automatic calibration are optional.
3. The same optical fiber and different optical fibers are connected in the center.
4. Electrical discharge ARC makes realtime compensation according to the pressure, environment and temperature parameter.
5. Two cameras can observe X axes and Y axes at the same time.
6. High resolution 5 inch color LED touch screen, multi languages are customizable.
2. Artificial calibration and real-time ARC automatic calibration are optional.
3. The same optical fiber and different optical fibers are connected in the center.
4. Electrical discharge ARC makes realtime compensation according to the pressure, environment and temperature parameter.
5. Two cameras can observe X axes and Y axes at the same time.
6. High resolution 5 inch color LED touch screen, multi languages are customizable.
Model |

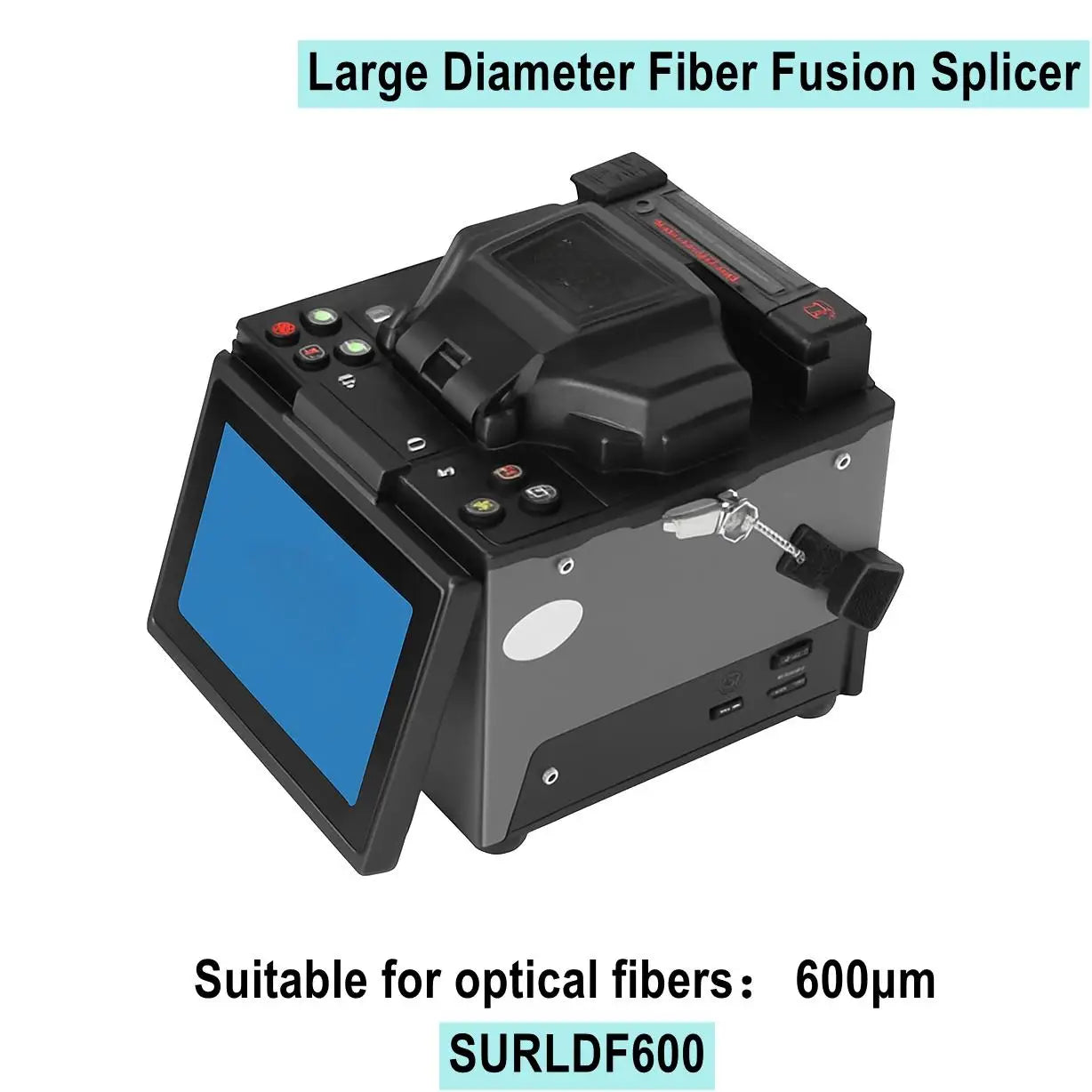

SURLDF600 |
Applicable fiber |
SM; MM; DS; NDZS |
||
Weight |
0.312KG (including battery) |
Return loss |
>60dB |
||
Electrode life |
Typical 3000 times discharge |
Fiber diameter |
Cladding diameter: 125–600μm |
||
Heat-shrink tube |
60/40mm and other miniature tube |
Data storage |
10000 groups data records and 200 group images |
||
Typical heat time |
≤30s (60mm) |
Tension test |
Typical 2N |
||
Typical splice time |
≤9s |
||||
Typical splice loss |
0.02dB(SM); 0.01dB(MM); 0.04dB(DS); 0.04dB(NDZS) |
||||
Cutting length |
8–16mm (Coating diameter ≤250μm); 16mm (Coating diameter 250–1000μm) |
||||
Fiber magnification |
X or Y single fiber image: 300X; X and Y double image: 150X |
||||
Operating condition |
Temperature: −10℃~+50℃; Humidity: <95%; Altitude: 0–5000m; Wind: max 15m/s |
||||
Power supply |
AC adapter, input AC100–240V (50/60Hz); output DC13.5V/4.5A; Battery capacity: 5200mAh Li-battery, 11.1V |
||||
5 Bullet Points
1️⃣ Wide Fiber Compatibility
Supports a broad range of large-diameter optical fibers from 125 µm to 500 µm, including single mode, multimode,
dispersion-shifted, and double-cladding fibers, suitable for laser and sensing systems.
2️⃣ High-Precision Dual Camera System
Features dual high-resolution cameras for simultaneous X and Y axis observation, with 300× single fiber magnification and 150×
dual view, ensuring accurate alignment and stable low-loss splicing.
3️⃣ Fast and Reliable Splicing Performance
Offers typical splice loss as low as 0.02 dB and 8–10 seconds splicing time. The auto ARC discharge system adjusts in real time
according to temperature, air pressure, and environment.
4️⃣ Smart Touch Screen and Multi-Language Interface
Equipped with a 5-inch color LED touch display, dual LED illumination for night use, and two USB ports for both data transfer and
auxiliary LED power — user-friendly and adaptable worldwide.
5️⃣ Durable, Portable, and Flexible Power Supply
Compact design weighing only 2.4 kg, powered by a 5200 mAh lithium battery or external DC/AC source. Stores up to 10,000 splice
records, ideal for laboratory, industrial, and field operations.
Supports a broad range of large-diameter optical fibers from 125 µm to 500 µm, including single mode, multimode,
dispersion-shifted, and double-cladding fibers, suitable for laser and sensing systems.
2️⃣ High-Precision Dual Camera System
Features dual high-resolution cameras for simultaneous X and Y axis observation, with 300× single fiber magnification and 150×
dual view, ensuring accurate alignment and stable low-loss splicing.
3️⃣ Fast and Reliable Splicing Performance
Offers typical splice loss as low as 0.02 dB and 8–10 seconds splicing time. The auto ARC discharge system adjusts in real time
according to temperature, air pressure, and environment.
4️⃣ Smart Touch Screen and Multi-Language Interface
Equipped with a 5-inch color LED touch display, dual LED illumination for night use, and two USB ports for both data transfer and
auxiliary LED power — user-friendly and adaptable worldwide.
5️⃣ Durable, Portable, and Flexible Power Supply
Compact design weighing only 2.4 kg, powered by a 5200 mAh lithium battery or external DC/AC source. Stores up to 10,000 splice
records, ideal for laboratory, industrial, and field operations.
