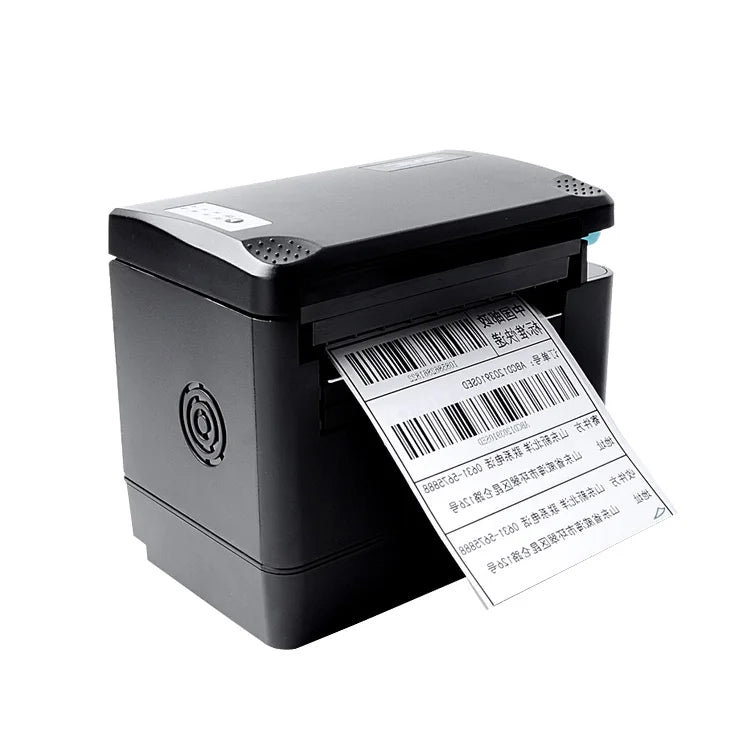

SNBC BTP-K716 Desktop Thermal Label Printer 4x6 USB Express Waybill Shipping Industrial Black White 203 DPI Roll Paper Used

Item

Parameters

Print

Resolution

203DPI

Print method

Direct thermal

Print width

108mm (Max.)

Print speed

150mm/s (Max.)

Memory

Bitmap printing only

Sensors

Label paper detecting sensor, Paper auto-loading sensor, Paper positioning sensor

Drivers

Windows drivers in 32-bit and 64-bit (XP, Win7, Win8, Win 8.1)

Interface

USB

Button, LED, LCD

1 Button, 3 LEDs

Barcodes
Fonts
Graphics

Barcodes

1D Barcode: Code39, UPCA, UPCE, Interleaved 2 of 5, CODE128, EAN13, EAN8, HBIC(code 39 with verify symbol), Codabar, industry/interleaved 2 of 5, storage and transportation code, CUC2UPC5, CODE93, Postnet 25(China), UCC/EAN CODE, matrix 25, POSTNET CODE etc.

2D Barcode: PDF417, QR code, MaxiCode, etc.

Fonts

Normal used single-byte fonts: FONT0-FONT8, 6 kinds of ASD smooth fonts, 8 kinds of Courier fonts;

User-defined fonts: User can define font and download it to FLASH or SDRAM

Character modification

Rotate (0°, 90°, 180°, 270°), enlarge (1-8x)

Graphics printing

Plain bit-image in binary system, HEX, PCX, BMP and IMG files can be downloaded to FLASH or RAM

Paper

Paper type

Label paper, continuous paper, folded paper

Paper roll OD

127mm (Max.)

Paper roll width

80-120mm (Max.)

Paper roll ID

25mm

Paper cut

Tear off

Power supply

Input

110 – 240V AC, 50-60Hz

Output

24V DC, 2.5A

Environment

Operation conditions

5℃~45℃,20%~80%RH(40℃)

Storage conditions

-4℃~55℃,20%~93%RH(40℃)

Physics Spec.

Dimensions

182 (L) ×112 (H)×153(W) mm

Weight

Approx. 1.6Kg
